33E11 | BACO

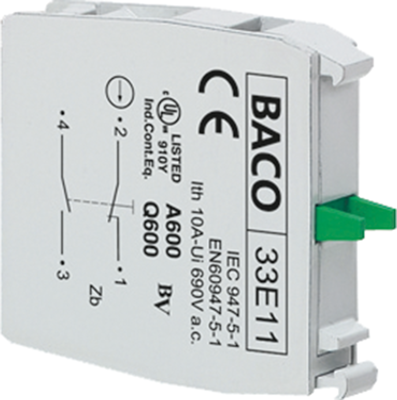

Contact element, 1 Form A (N/O) + 1 Form B (N/C), groping, 600 V, 10 A, 33E11
Order No.: 12G5305
EAN: 4099889255461
MPN:
33E11
Unit Price (€ / pc.)
7.7707 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
7.77 € *
Price list
Quantity
Price per unit*
20 pcs.
7.7707 €
60 pcs.
7.2471 €
100 pcs.
6.9258 €
500 pcs.
6.5688 €
*incl. VAT plus shipping costs
**Subject to prior sale
Control and signal gear, 22 and 30 mm, type BACO.
The contact elements, actuating elements, and accessories can be combined to suit your requirements; Certification: UL. Operating temperatures: –25 to +70 °C.
Contact elements with screw terminals, type 33E.
Rated insulation voltage: 690 VAC. Rated surge voltage strength: 6.0 kV. Continuous thermal current AC15/DC13: 10/2.5 A. Minimum operating current: Vin 24 VDC, Iin 5.0 mA. Terminating cross-section with/without wire end ferrule: 0.5 to 2 x 1.5/2.5 mm². Width: 9.9 mm.
Type: 33E11, NO + NC
Technical specifications
| Connection | screw connection | |
| Version | contact block | |
| can be illuminated | No | |
| Isolation voltage | 690 V | |
| Contact function | groping | |
| Contact material | silver | |
| Rated voltage | 600 V | |
| Rated current | 10 A | |
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
