11050900 | bda connectivity

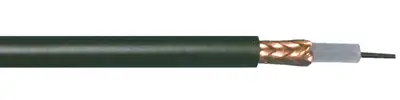

Coax RF cable, 75 Ω (75R), black, Staku solid wire, bright, 11050900
Unit Price (€ / mtr.)
2.9512 € *
Available: 33 mtr.
Leadtime: 1 Week **
Total Price:
2.95 € *
Price list
Quantity
Price per unit*
1 mtr.
2.9512 €
25 mtr.
2.5109 €
100 mtr.
2.3324 €
200 mtr.
2.2253 €
800 mtr.
2.0468 €
*incl. VAT plus shipping costs
**Subject to prior sale
Coax RF cables, 75 ohm to MiL-C-17, type RG 59 B/U.
Technical specifications
| Outer diameter | 6.15 mm | |
| Dielectric material | PE | |
| Dielectric diameter | 3.7 mm | |
| Colour | black | |
| Impedance | 75 Ω | |
| Capicity/m | 67 pF/m | |
| Cable structure | 1 x 0.58 mm | |
| Cable material | copper | |
| Material | FRNC | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -20 °C | |
| Shielding | shielded |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85442000 |
| Original Packaging | Ring with 100 meters |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
