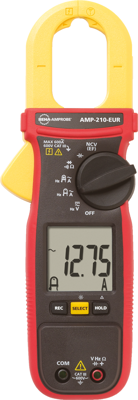

AMP-210-EUR | BEHA-AMPROBE
TRMS AC current clamp AMP-210-EUR, 600 A (AC), 150 V (DC), 600 V (AC), opening 30 mm, CAT III 600 V
Order No.: 22K7742
EAN: 0095969770903
MPN:
AMP-210-EUR
4560581
Unit Price (€ / pc.)
204.68 € *
Available: 0 pcs.
Leadtime: On Request **
AC current clamp, 4560581, BEHA-AMPROBE
Beha-Amprobe's AMP-210-EUR and AMP-220-EUR current clamps with true rms measurements up to 600 A offer a variety of measurement functions for modern electrical systems. Both models include true-rms measurement, low-pass filters and short-response processors to ensure fast, error-free measurements. The Amp-Tip feature provides precise current measurement down to 0.1 A, enabling accurate current measurement on both large and small wire diameters.
Features
- Accurate measurement of small currents (Amp-Tip)
- Backlit display
Technical specifications
| Ausführung | AC-Stromzange | |
| Echteffektivwertmessung (TRMS) möglich | Yes | |
| max. Messwert (Frequenz) | 999.9 Hz | |
| max. Strommesswert (bei AC) | 600 A | |
| max. Widerstandsmessbereich | 60 kΩ | |
| min. Messwert (Frequenz) | 5 Hz | |
| Spannungsmessbereich (AC) | 600 V | |
| Spannungsmessbereich (DC) | 150 V | |
| Überspannungskategorie | CAT III 600 V | |
| Zangenöffnung | 30 mm |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 90303100 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
