AMP-220-EUR | BEHA-AMPROBE
TRMS AC/DC current clamp AMP-220-EUR, 600 A (DC), 600 A (AC), 600 V (DC), 600 V (AC), opening 35 mm, CAT III 600 V

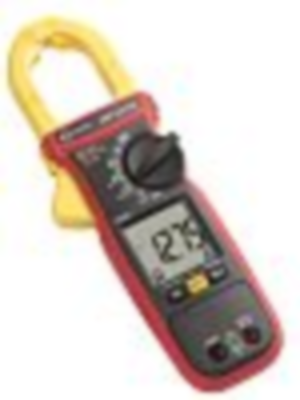

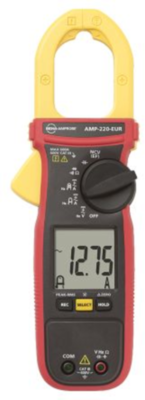

DC/AC current clamp meters, type BEHA-AMPROBE AMP-220-EUR.
TRMS measurements, low-pass filter, Amp-Tip function, non-contact voltage detection, acoustic continuity check and diode test, Data Hold mode, relative measurement/zero balancing; LCD: 3-5/6 digit, backlit. DC and AC voltage: 600 V. DC and AC current: 600 A. Frequency: 5.0 to 999.9 Hz. Capacitance: up to 2500 µF. Resistance: up to 60 kohm. Acoustic continuity check: up to 250 ohm. Jaw width: 35 mm. Overvoltage category: CAT III 600 V. Certifications: UL, CE. Operation: 2 x AAA 1.5 V batteries. Dimensions: L 224, W 77, H 37 mm. Weight: 254 g. Supplied with carrying case, set of batteries, test leads, set of alligator clips, thermocouples type K with banana plug, user manual.
Type: AMP-220-EUR, DC/AC current clamp meter
| Ausführung | AC/DC-Stromzange | |
| Echteffektivwertmessung (TRMS) möglich | Yes | |
| max. Messwert (Frequenz) | 999.9 Hz | |
| max. Strommesswert (bei AC) | 600 A | |
| max. Strommesswert (bei DC) | 600 A | |
| max. Widerstandsmessbereich | 60 kΩ | |
| min. Messwert (Frequenz) | 5 Hz | |
| Spannungsmessbereich (AC) | 600 V | |
| Spannungsmessbereich (DC) | 600 V | |
| Überspannungskategorie | CAT III 600 V | |
| Zangenöffnung | 35 mm |
| Ursprungsland | TW |
| Zolltarifnummer | 90303100 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
