37XR-A-D | BEHA-AMPROBE

Name: TRMS digital multimeter 37XR-A-D, 10 A(DC), 10 A(AC), 1000 VDC, 750 VAC, 10 pF to 400 µF, CAT III 600 V
Brand: BEHA-AMPROBE
SKU: 20K8937
Price: 353.43 EUR
Availability: OutOfStock

TRMS digital multimeter 37XR-A-D, 10 A(DC), 10 A(AC), 1000 VDC, 750 VAC, 10 pF to 400 µF, CAT III 600 V

Order No.: 20K8937

EAN: 4099891455798

MPN:

37XR-A-D

3454698

Image may differ

Key Specification:

Ausführung Digital-Multimeter

Echteffektivwertmessung (TRMS) möglich Yes

max. Strommesswert (bei DC) 10 A

max. Strommesswert (bei AC) 10 A

Spannungsmessbereich (DC) 1000 V

Ordering Information:

Lieferung inkl. Magnet-Grip-Holster mit Magnetriemen, 2 Messleitungen und Batterie (9,0 V)

Download Datasheet Technical specifications

Unit Price (€ / pc.)

353.43 € *

Available: 0 pcs.

Leadtime: On Request **

Add to Cart

Total Price:

353.43 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

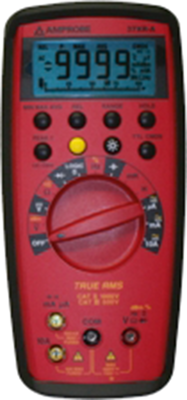

Digital multimeters, type BEHA-AMPROBE 37 XR-A.

Ergonomic and rugged device; Features: MIN/MAX/Peak value/Relative value/Data Hold functions, analog segment display with 41 segments for the trend view, autoranging, true RMS measurement, backlit display. DC voltage: 0.1 mV to 1000 V. AC voltage: 0.1 mV to 750 V. DC/AC current: 0.01 µA to 10 A. Resistance: 0.1 ohm to 40 Mohm. Frequency: 3.0 to 10 MHz. Capacitance: 0.01 nF to 400 µF. Inductance: 1.0 µH to 40 H. Display: LCD, 4-digit, 9999 digits. Safety specifications: Cat. III 600 V, Cat II 1000 V. Dimensions: 196 x 92 x 60 mm. Weight: 482 g. Supplied with magnet grip holster with magnetic straps, 2 test leads and 9.0 V battery.

Type: 37 XR–A, digital multimeter

Technical specifications

	Anzeige Digits	9999
	Ausführung	Digital-Multimeter
	Echteffektivwertmessung (TRMS) möglich	Yes
	Kapazitätsbereich	10 pF bis 400 µF
	max. Strommesswert (bei AC)	10 A
	max. Strommesswert (bei DC)	10 A
	max. Widerstandsmessbereich	40 MΩ
	Spannungsmessbereich (AC)	750 V
	Spannungsmessbereich (DC)	1000 V
	Überspannungskategorie	CAT III 600 V
