PRM-6-EUR | BEHA-AMPROBE

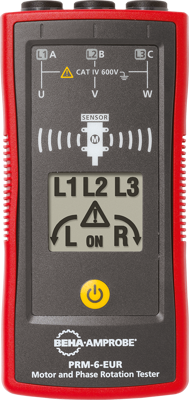

Rotary field direction tester, BEHA-AMPROBE PRM-6-EUR

Order No.: 27K3013
EAN: 95969785679
MPN:
PRM-6-EUR
4633222
PRM-6-EUR BEHA-AMPROBE Power Analysers
Image may differ
Unit Price (€ / pc.)
188.02 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
188.02 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
188.02 €

Motor direction of rotation and rotating field direction indicator, PRM-6-EUR, BEHA-AMPROBE

When installing and connecting 3-wire three-phase motors and three-phase systems, it is important to check whether the rotating field of the motors and the direction of rotation of the three-phase system are correct. Incorrect connection can cause an incorrect starting of the three-phase motor and damage the motor or the driven machine.

In addition to the rotating field display of the PRM-5-EUR, the PRM-6-EUR has a clear, illuminated LCD display and allows the motor connections (U, V, W) to be determined without voltage. A further function is the non-contact motor rotation direction display for running motors without direct connection by means of magnetic detection of the rotating field.

Features

  • Robust housing with rubber protective cover
  • Removable test leads
  • Measurement category CAT IV, 600 V
  • Backlighting
  • Rotary field direction test also possible without or with discharged battery
Technical specifications
Version mit LC-Anzeige
Batteries AAA
Product type Drehfeldrichtungsprüfer
Voltage 1-700 V
Connector BNC
Audio Signal No
Logistics
Country of origin CN
Customs tariff number 90303370
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
