DUSPOL DIGITAL | Benning

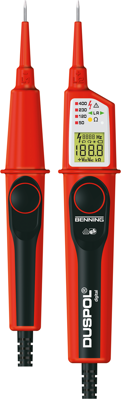

Benning voltage/continuity tester, DUSPOL DIGITAL, 050263
Unit Price (€ / pc.)
117.81 € *
Available: 2 pcs.
Leadtime: 1 Week **
Voltage and continuity testers, type Benning Duspol digital.
TRMS, for testing DC and AC voltage, resistance and frequency ranges, phase sequence, phase and polarity, illuminated LCD, measuring spot illumination, fault current circuit-breaker test, optical and acoustic continuity test, vibration alarm; Voltage: 1.0 to 1000 VAC/1200 VDC. Resistance: 0.1 to 300 kohm. Frequency: 15 to 1000 Hz. Current consumption: selectable 550 mA burden (at 1000 VDC). Certification: IEC/EN 61243-3 (DIN VDE 0682-401) voltage class B. Overvoltage category: CAT IV 600 V, CAT III 1000 V. Degree of protection: IP 65. Operation: 2 batteries, 1.5 V Micro/AAA (included).
Type: 050263, voltage and continuity tester
Technical specifications
| Anzeige | LED/LCD | |
| Ausführung | Spannungs-/Durchgangsprüfer | |
| Durchgangsprüfung | 0,1-300 kΩ | |
| Messkategorie | CAT IV | |
| Schutzart (IP) | IP65 | |
| Spannungsmessbereich (AC) | 1000 V | |
| Spannungsmessbereich (DC) | 1200 V |
Download
Logistics
| Ursprungsland | IE |
| Zolltarifnummer | 90303370 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
