9-205 | Bernstein
Ball joint vise, span width 70 mm, jaw width 50 mm, die-cast aluminum, 9-205
Unit Price (€ / pc.)
153.51 € *
Available: 14 pcs.
Available in 5 Days: 230 pcs.
Leadtime: 2 Weeks **

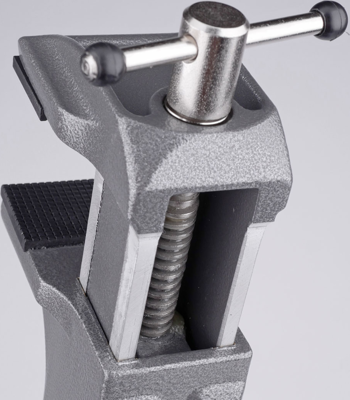

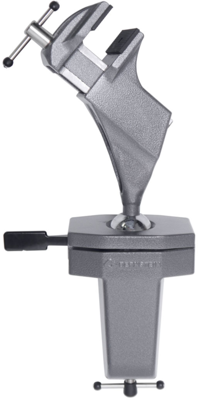

Vise, type Bernstein Spannfix 9-205

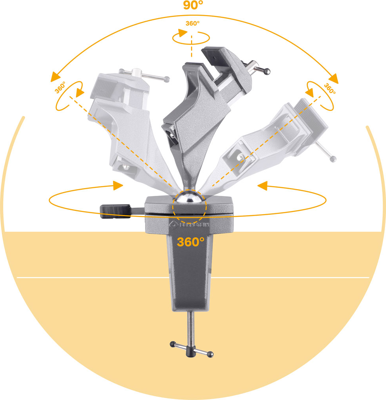

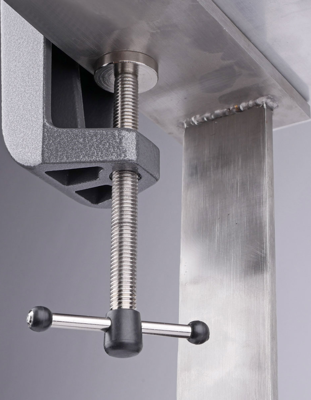

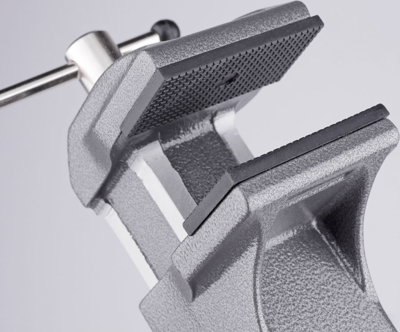

With ball joint and locking lever. The work piece can be adjusted to suit any working position. With tabletop screw clamp (tabletop thickness: max. 80 mm). Special plastic jaws with a width of 50 mm.
Clamping pressure: 1470 N
Clamping width: 70 mm
Clamping depth: 38 mm
Technical specifications
| Ausführung | Kugelgelenk-Schraubstock | |
| Backenbreite | 50 mm | |
| ESD-Schutz | No | |
| Material | Aluminium-Druckguss | |
| Spannweite | 70 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 82057000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
