9-270-ESD | Bernstein
ESD ball joint combination, 410 x 300 mm, jaw width 80 mm, die-cast aluminum, 9-270-ESD
Unit Price (€ / pc.)
311.5420 € *
Available: 0 pcs.
Available in 5 Days: 3 pcs.
Leadtime: 2 Weeks **
Total Price:
311.54 € *
Price list
Quantity
Price per unit*
1 pcs.
311.5420 €
3 pcs.
302.1886 €
10 pcs.
291.8118 €
25 pcs.
284.0173 €
50 pcs.
277.7936 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB holder, 9-270-ESD, Bernstein

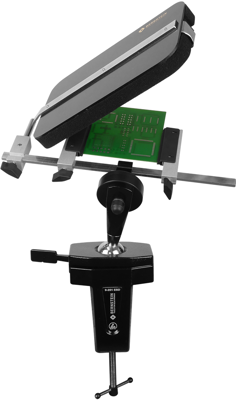

With the SPANNFIX VARIO PCB's, printed circuit boards can be clamped up to a length of 270 mm. The infinitely adjustable ball allows the PCB to be positioned and held securely in all directions.

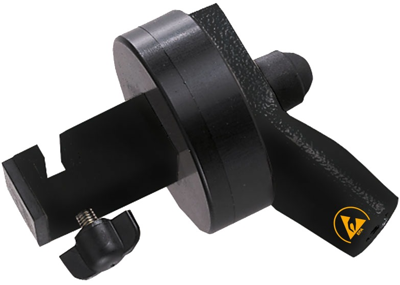

A quick turning of the PCB's, printed circuit boards is possible thanks to the adapter, which can be turned and locked in +/- 45° steps. The adjusting screws with ergonomic handle are smooth-running and facilitate adjustment. The ESD cover plate prevents the components from falling out when turning.
Features

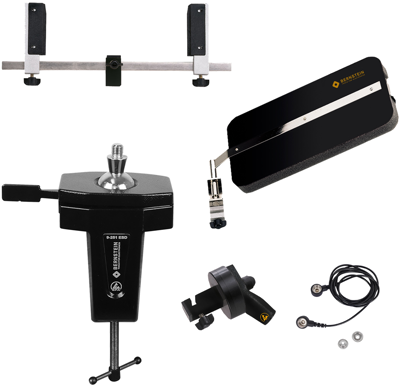

- Sturdy mounting frame with adjustable and rotatable holders
- Spring loaded holder for sensitive boards

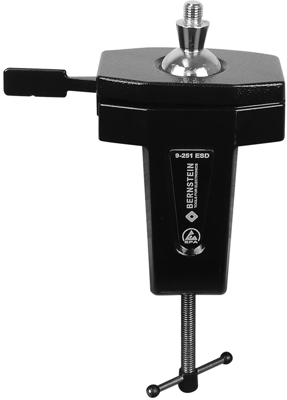

- With precision ball joint with quick release, infinitely adjustable
- A long service life is guaranteed by the high-quality, powder-coated cast aluminium and the surface-finished steel parts
Technical specifications
| Version | Kugelgelenk-Kombination | |
| Jaw width | 80 mm | |
| ESD protection | Yes | |
| Size | 410 x 300 mm | |
| Material | Aluminium-Druckguss |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 82057000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
