9-290-SET1 | Bernstein

Ball joint vise, 220 x 200 mm, span width 100 mm, jaw width 100 mm, aluminum, 9-290-SET1

Order No.: 05L0239
EAN: 4250838533119
MPN:
9-290-SET1
Series: SPANNFIX
Bernstein
9-290-SET1 Bernstein Bench Vices, PCB Holders, Clamps Image 1
9-290-SET1 Bernstein Bench Vices, PCB Holders, Clamps Image 2
9-290-SET1 Bernstein Bench Vices, PCB Holders, Clamps Image 3
9-290-SET1 Bernstein Bench Vices, PCB Holders, Clamps Image 4
9-290-SET1 Bernstein Bench Vices, PCB Holders, Clamps Image 5
Image may differ
Print
Key Specification:
Ausführung Kugelgelenk-Schraubstock
Größe 220 x 200 mm
Spannweite 100 mm
Backenbreite 100 mm
ESD-Schutz No
Show 3 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
408.1938 € *
Available: 1 pcs.
Available in 5 Days: 1 pcs.
Leadtime: 2 Weeks **
Total Price:
408.19 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
408.1938 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

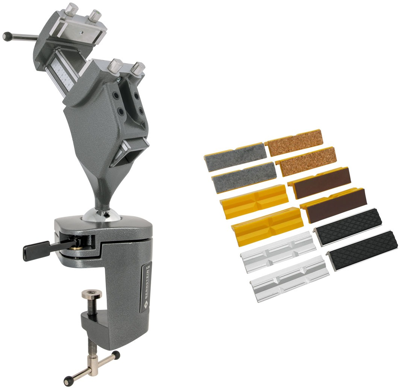

Ball joint vice, 9-290-SET1, Bernstein

Features

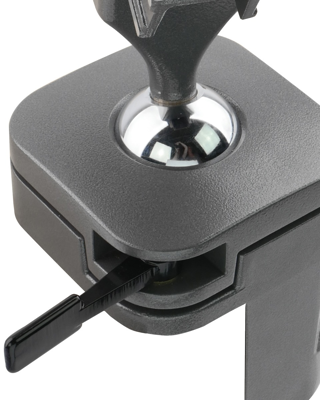

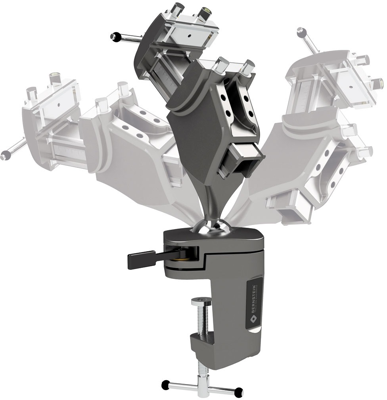

  • Precision ball joint 360° rotatable, infinitely adjustable quick clamping
  • For clamping to the workbench (table thickness max. 80mm)

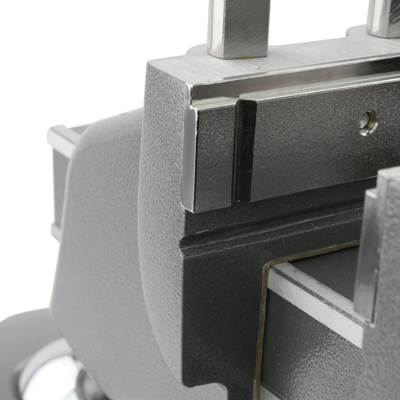

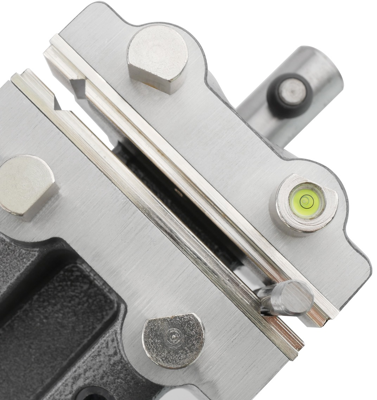

  • 100 mm steel jaws (exchangeable)
  • Clamping width 100 mm
  • Clamping depth 50 mm
  • Clamping pressure 12.000 N
  • Incl. steel jaws (pair), dowel pins (VE4), set of jaws 9-900-SET-100
Technical specifications
Ausführung Kugelgelenk-Schraubstock
Backenbreite 100 mm
ESD-Schutz No
Größe 220 x 200 mm
Material Aluminium
Spannweite 100 mm
Show similar products 0
Logistics
Ursprungsland DE
Zolltarifnummer 82057000
Compliance
RoHS konform not_relevant
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
