3-963-15 | Bernstein

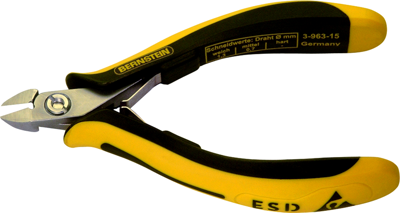

ESD side cutter, 120 mm, 75 g, cut capacity (1.3/0.7 mm/–/–), 3-963-15

Order No.: 05L4602
EAN: 4099891354541
MPN:
3-963-15
Series: TECHNICLINE
Bernstein
3-963-15 Bernstein Side Cutters, Tip Cutters
Image may differ
This item is no longer available.
As an alternative, we recommend the following item:
ESD high precision side cutter, 120 mm, 82 g, cut capacity (1/0.8 mm/–/–), ES5142.CR.BG
ESD high precision side cutter, 120 mm, 82 g, cut capacity (1/0.8 mm/–/–), ES5142.CR.BG
Order No.: 02L7006
Manufacturer: ideal-tek
per pc. 52.8241 € *
*incl. VAT plus shipping costs

Electronic technician's special ESD pliers, type Bernstein TECHNIC line.

Made of ball bearing steel (chrome steel), precision joint with screw system (precise alignment of the cutting edges without play), reflection-free surface, double leaf spring and ergonomic finger protection sleeves.

Diagonal cutter with slim rounded head.

Cutting edge hardness: 63 to 65 HRC.

Head width: 10 mm. Length: 120 mm. Weight: 75 g.

Cutting values: soft- / medium-hard - 1.3mm / 0.7mm

Technical specifications
Version side cutter
ESD protection Yes
Weight 75 g
Length 120 mm
Material ball bearing steel
Cutting edge without facet
Cutting capacity (medium-hard) 0.7 mm
Cutting capacity (soft) 1.3 mm
1000V Insulated No
Logistics
Country of origin CH
Customs tariff number 82032000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
