22AR20KLFTR | BI Technologies
Cermet trimmer potentiometer, 20 kΩ, 0.125 W, SMD, on top, 22AR20KLFTR
Unit Price (€ / pc.)
2.6299 € *
Available: 3,496 pcs.
Leadtime: 64 Weeks **
Total Price:
2.63 € *
Price list
Quantity
Price per unit*
1 pcs.
2.6299 €
25 pcs.
2.2372 €
100 pcs.
2.0706 €
250 pcs.
1.9635 €
1000 pcs.
1.7850 €
*incl. VAT plus shipping costs
**Subject to prior sale

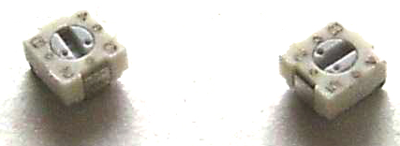

Trimmer potentiometer, 22AR20KLFTR, BI Technologies
Surface mount single turn trimmer with a 3 mm square size. It is sealed and made of cermet material.

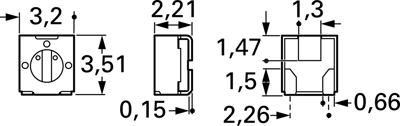

Technical specifications
| ohmic resistance | 20 kΩ | |
| Connection | J-hook | |
| Version | cermet trimmer potentiometer | |
| Width | 3.4 mm | |
| Rotary range, electrical | 220 ° | |
| Mechanic rotary range | 250 ° | |
| Seeting | on top | |
| Height | 2 mm | |
| Contact distance | RM 2.26 | |
| Length | 3.2 mm | |
| Power | 0.125 W | |
| max. number of revolutions | 1 | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Assembly | SMD | |
| Tolerance | ±20 % | |
| Temperature coefficient | ±100 ppm/K | |
| Track Taper | linear |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85334010 |
| Original Packaging | Reel with 1,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
