23AR1MEGLFTR | BI Technologies

Cermet trimmer potentiometer, 1 MΩ, 0.25 W, SMD, on top, 23AR1MEGLFTR

Order No.: 64E7574
EAN: 4099879885395
MPN:
23AR1MEGLFTR
Series: 23
BI Technologies
23AR1MEGLFTR BI Technologies Trimmer Potentiometers Image 1
23AR1MEGLFTR BI Technologies Trimmer Potentiometers Image 2
Image may differ
Unit Price (€ / pc.)
2.1658 € *
Available: 9,427 pcs.
Leadtime: 24 Weeks **
Total Price:
2.17 € *
Price list
Quantity
Price per unit*
1 pcs.
2.1658 €
25 pcs.
1.8564 €
100 pcs.
1.7017 €
500 pcs.
1.5232 €
1000 pcs.
1.4637 €
*incl. VAT plus shipping costs
**Subject to prior sale

Trimmer potentiometer, 23AR1MEGLFTR, BI Technologies

Cermet trimming potentiometer, sealed and surface mountable. 4 mm square shape.

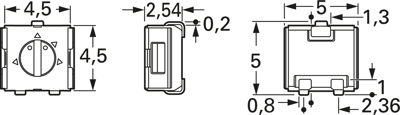

Technical specifications
ohmic resistance 1 MΩ
Connection J-hook
Version cermet trimmer potentiometer
Width 5 mm
Rotary range, electrical 200 °
Seeting on top
Height 2.7 mm
Contact distance RM 2.36
Length 4.5 mm
Power 0.25 W
max. number of revolutions 1
max. operating temperature 125 °C
min. operating temperature -55 °C
Assembly SMD
Tolerance ±20 %
Temperature coefficient ±100 ppm/K
Track Taper linear
Logistics
Country of origin TW
Customs tariff number 85334010
Original Packaging Reel with 500 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
