44JR10KLFTB | BI Technologies

Cermet trimmer potentiometer, 9 turns, 10 kΩ, 0.25 W, SMD, lateral, 44JR10KLFTB

Order No.: 64E6868
EAN: 4099879885234
MPN:
44JR10KLFTB
Series: 44
BI Technologies

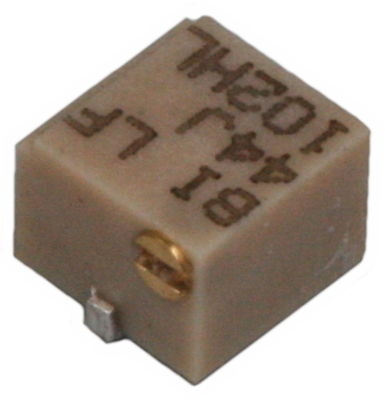

44JR10KLFTB BI Technologies Trimmer Potentiometers Image 1

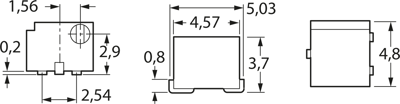

44JR10KLFTB BI Technologies Trimmer Potentiometers Image 2
Image may differ
Unit Price (€ / pc.)
3.2011 € *
Available: 0 pcs.
Leadtime: 15 Weeks **
Total Price:
3.20 € *
*incl. VAT plus shipping costs
**Subject to prior sale
500 pcs.
3.2011 €

Trimmer potentiometer, 44JR10KLFTB, BI Technologies

Surface mount cermet trimming potentiometer, designed for compact board designs. 4 mm square multiturn size. Sealed to withstand aggressive water wash and has a long life construction, ensuring high quality and reliability. Can be adjusted from the side.

Technical specifications
ohmic resistance 10 kΩ
Connection gull-wing
Version cermet trimmer potentiometer
Width 5.03 mm
Rotary range, electrical 3240 °
Seeting lateral
Height 3.73 mm
Contact distance RM 2.29/3.99
Length 4.83 mm
Power 0.25 W
max. number of revolutions 9
max. operating temperature 150 °C
min. operating temperature -65 °C
Assembly SMD
Tolerance ±10 %
Temperature coefficient ±100 ppm/K
Track Taper linear
Logistics
Country of origin MY
Customs tariff number 85334010
Original Packaging Bar with 100 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
