44WR2KLFTB | BI Technologies

Cermet trimmer potentiometer, 9 turns, 2 kΩ, 0.25 W, SMD, on top, 44WR2KLFTB

Order No.: 64E6814
EAN: 4099879885081
MPN:
44WR2KLFTB
Series: 44
BI Technologies

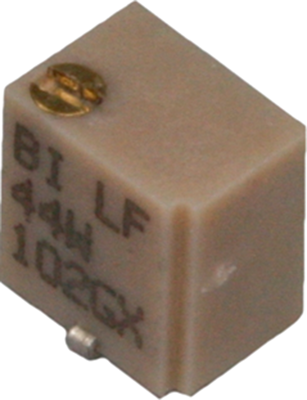

44WR2KLFTB BI Technologies Trimmer Potentiometers Image 1
44WR2KLFTB BI Technologies Trimmer Potentiometers Image 2
Image may differ
Unit Price (€ / pc.)
6.7116 € *
Available: 504 pcs.
Leadtime: 15 Weeks **
Total Price:
6.71 € *
Price list
Quantity
Price per unit*
1 pcs.
6.7116 €
10 pcs.
4.8076 €
100 pcs.
4.1055 €
500 pcs.
3.5700 €
1000 pcs.
3.2368 €
*incl. VAT plus shipping costs
**Subject to prior sale

Trimmer potentiometer, 44WR2KLFTB, BI Technologies

Surface mount cermet trimming potentiometer designed for compact board designs. 4 mm square multiturn size. Sealed to withstand aggressive water wash and has a long life construction, ensuring high quality and reliability. Can be adjusted from the top.

Technical specifications
ohmic resistance 2 kΩ
Connection J-hook
Version cermet trimmer potentiometer
Width 4.83 mm
Rotary range, electrical 3240 °
Seeting on top
Height 5.31 mm
Contact distance RM 2.54/2.9
Length 3.91 mm
Power 0.25 W
max. number of revolutions 9
max. operating temperature 150 °C
min. operating temperature -65 °C
Assembly SMD
Tolerance ±10 %
Temperature coefficient ±100 ppm/K
Track Taper linear
Logistics
Country of origin MY
Customs tariff number 85334010
Original Packaging Bar with 100 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
