67XR25KLF | BI Technologies
Cermet trimmer potentiometer, 20 turns, 25 kΩ, 0.5 W, THT, lateral, 67XR25KLF
Unit Price (€ / pc.)
1.2257 € *
Available: 0 pcs.
Leadtime: 15 Weeks **
Trimmer potentiometer, 67XR25KLF, BI Technologies
The cermet trimming potentiometer is designed with a 3/8 inch square shape, ensuring compatibility with various electronic applications. It features a multiturn mechanism for precise adjustments and is sealed to withstand aqueous PCB cleaning processes. With its high reliability and long lifespan, this potentiometer offers exceptional performance and durability.
Applications
- Consumer electronics
- Medical applications
- Any application requiring adjustability or calibration

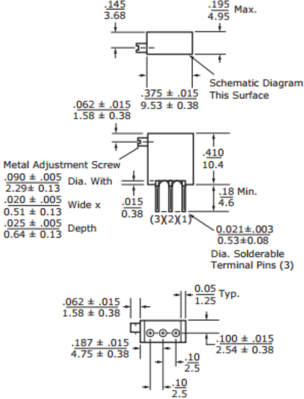

Technical specifications
| ohmscher Widerstand | 25 kΩ | |
| Anschluss | Lötstift | |
| Ausführung | Cermet-Trimmpotentiometer | |
| Breite | 4.95 mm | |
| Drehbereich (elektrisch) | 7200 ° | |
| Einstellung | seitlich | |
| Höhe | 10.4 mm | |
| Kontaktabstand | RM 2,5 | |
| Länge | 9.53 mm | |
| Leistung | 0.5 W | |
| max. Anzahl der Umdrehungen | 20 | |
| max. Temperatur | 125 °C | |
| min. Temperatur | -55 °C | |
| Montage | THT | |
| Toleranz | ±10 % | |
| Temperaturkoeffizient | ±100 ppm/K | |
| Widerstandsverlauf | linear |
Download
Logistics
| Ursprungsland | MX |
| Zolltarifnummer | 85334010 |
| Originalverpackung | Bulk mit 50 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
