78PR10KLF | BI Technologies

Cermet trimmer potentiometer, 22 turns, 10 kΩ, 1 W, THT, lateral, 78PR10KLF

Order No.: 64E8418
EAN: 4099879887580
MPN:
78PR10KLF
Series: 78
BI Technologies

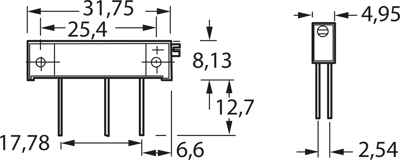

78PR10KLF BI Technologies Trimmer Potentiometers Image 1

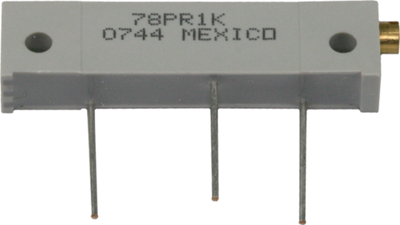

78PR10KLF BI Technologies Trimmer Potentiometers Image 2
Image may differ
Unit Price (€ / pc.)
5.3788 € *
Available: 169 pcs.
Leadtime: 18 Weeks **
Total Price:
5.38 € *
Price list
Quantity
Price per unit*
1 pcs.
5.3788 €
25 pcs.
4.7243 €
100 pcs.
4.4744 €
250 pcs.
4.3078 €
1000 pcs.
4.0579 €
*incl. VAT plus shipping costs
**Subject to prior sale

Cermet trimmers, type TT electronics/BI technologies 78P.

22 turns (electrical). Axial, side adjustment; Load rating: 1.0 W at +70 °C (0 at +125 °C). Operating voltage: 300 VDC. Operating temperatures: –55 to +125 °C. Tolerance: ±10 % (below 100R = ±20 %). Temperature coefficient: ±100. Contact arrangement: P. Center contact offset to the side.

Type: 10K

Technical specifications
ohmic resistance 10 kΩ
Connection solder pin
Version cermet trimmer potentiometer
Width 4.95 mm
Rotary range, electrical 7920 °
Seeting lateral
Height 8.13 mm
Contact distance RM 2.54
Length 31.75 mm
Power 1 W
max. number of revolutions 22
max. operating temperature 125 °C
min. operating temperature -55 °C
Assembly THT
Tolerance ±10 %
Temperature coefficient ±100 ppm/K
Track Taper linear
Logistics
Country of origin MX
Customs tariff number 85334010
Original Packaging Bulk with 25 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
