93PR2KLF | BI Technologies
Cermet trimmer potentiometer, 2 kΩ, 1 W, THT, on top, 93PR2KLF
Unit Price (€ / pc.)
2.6299 € *
Available: 0 pcs.
Leadtime: 15 Weeks **

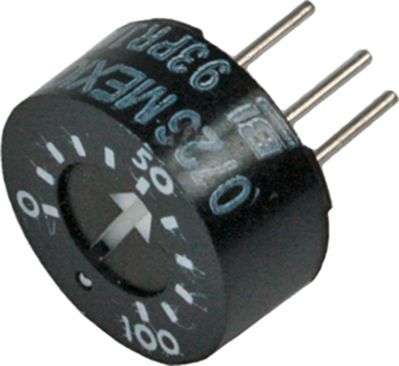

Trimmer potentiometer, 93PR2KLF, BI Technologies
Single-turn trimmer made of cermet material. Diameter: 1/2 inch.
Technical specifications
| ohmic resistance | 2 kΩ | |
| Connection | solder pin | |
| Version | cermet trimmer potentiometer | |
| Rotary range, electrical | 270 ° | |
| Seeting | on top | |

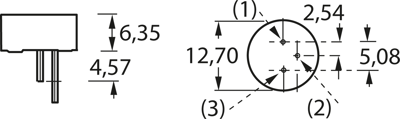

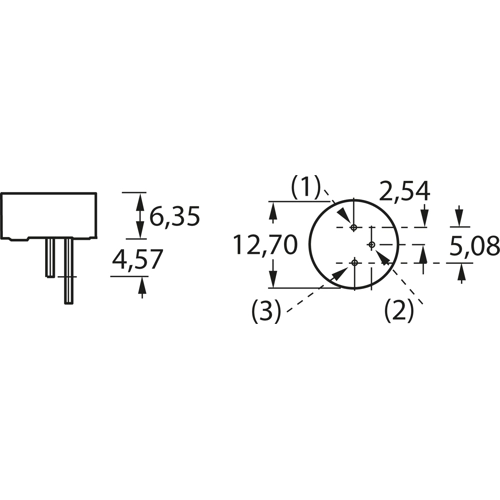

| Height | 6.35 mm | |
| Contact distance | RM 5.08 | |
| Power | 1 W | |
| max. number of revolutions | 1 | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Assembly | THT | |
| Tolerance | ±10 % | |
| Temperature coefficient | ±100 ppm/K | |
| Track Taper | linear |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85334010 |
| Original Packaging | Bulk with 50 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
