WMHP100-4R7F | BI Technologies
Wirewound resistor, 4.7 Ω, 100 W, ±1 %, WMHP100-4R7F
Unit Price (€ / pc.)
16.3268 € *
Available: 451 pcs.
Leadtime: On Request **
Total Price:
16.33 € *
Price list
Quantity
Price per unit*
1 pcs.
16.3268 €
10 pcs.
14.6965 €
50 pcs.
13.3518 €
150 pcs.
12.2332 €
500 pcs.
11.2931 €
*incl. VAT plus shipping costs
**Subject to prior sale

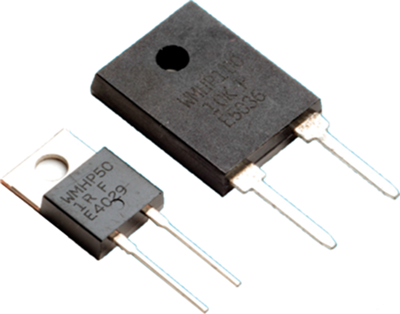

Power metal film resistors, 1.0 and 5.0 % tolerance, type TT electronics/BI technologies WMHP20/WMHP100.
Neutral induction. Sliding scale prices are valid exclusively for the quantity per resistance value ordered.
Rated power 100 W, type WMHP100.
TO247 package; Rated load: 100 W (3.5 W without heatsink). Operating temperatures: –65 to +175 °C.
Technical attributes (type, resistance value, tolerance, temperature coefficient (TC)): 4R7, 1.0 %, ±100 ppm/C°
Technical specifications
| ohmic resistance | 4.7 Ω | |
| Version | power metal film resistor | |
| Design | radial | |
| Width | 4.95 mm | |
| Height | 20.7 mm | |
| Length | 15.752 mm | |
| Power | 100 W | |
| max. operating temperature | 175 °C | |
| min. operating temperature | -65 °C | |
| Assembly | THT | |
| Tolerance | ±1 % | |
| Temperature coefficient | 100 ppm/K |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85332100 |
| Original Packaging | Bar with 30 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
