DC/DC converter with UPS function, 16-32 VDC, 60 W, ±12 VDC, 94 % efficiency, DC2412-UPS
Unit Price (€ / pc.)
198.73 € *
Available: 1 pcs.
DC/DC converter, DC2412-UPS, Bicker Elektronik

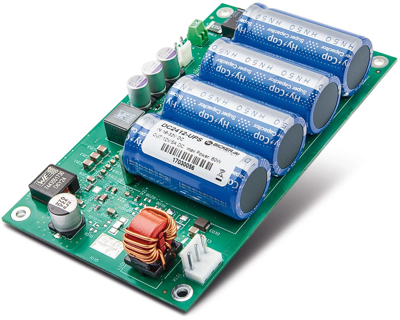

The DC2412-UPS is the fail-safe 12-volt power supply with ultra-capacitors for IoT / Industrial 4.0, kiosk, POI / POS, signage, medical devices and many more. The highly efficient design enables fanless operation in the extended industrial temperature range. The Supercaps are charged during normal operation and ensure the uninterruptible power supply.
Features
- DC UPS with wide range input 16-32 VDC and 12 VDC output
- Maintenance-free supercaps for energy storage
- High cycle stability up to 500.000
- High efficiency 94% typ.
- Extended temperature range -20...+70°C
- Compact design
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output current | 5 A | |
| Output voltage DC | ±12 VDC | |
| Input voltage AC | 16-32 VDC | |
| Power | 60 W | |
| efficiency | 94 % | |

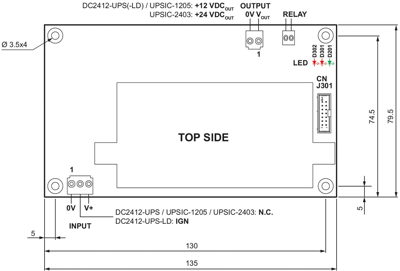

| Length | 135 mm | |
| Width | 79.5 mm | |
| Height | 28.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85044083 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
