BP-LFP-1325SD | Bicker Elektronik

Lithium iron phosphate-battery, 13.2 V, 2.5 Ah, 105 x 70 x 32 mm, connector, BP-LFP-1325SD

Order No.: 70C1542
EAN: 4251877650706
MPN:
BP-LFP-1325SD
Series: BP-LFP
BP-LFP-1325SD Bicker Elektronik Lead-Acid Batteries, Lithium-Ion Batteries
Image may differ
Unit Price (€ / pc.)
236.81 € *
Available: 1 pcs.
Leadtime: 1 Week **
Total Price:
236.81 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
236.81 €

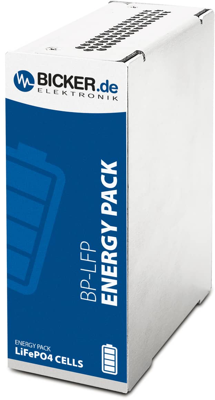

Battery pack, BP-LFP-1325SD, Bicker Elektronik

The high-quality LiFePO4 battery pack with IEC 62133-2 safety certification is characterized by a wide operating temperature range. With more than 6,000 charge/discharge cycles, the battery pack guarantees a long service life. In addition, the LiFePO4 pack offer a high energy density. The robust metal housing has a universal DIN rail mounting system and is ideally suited for use in control cabinets and industrial applications.

Features

  • 10 years long-life battery pack
  • High reliability
  • Safe lithium iron phosphate technology
  • System present function
  • 100% free of lead and cadmium
  • Extended temperature range -20...+55°C
Technical specifications
Anschluss Steckverbinder
Anwendung DIN-Schiene
Breite 70 mm
Gewicht 340 g
Höhe 32 mm
Länge 105 mm
max. Temperatur 55 °C
min. Temperatur -20 °C
Nennkapazität 2.5 Ah
Nennspannung 13.2 V
Technologie Lithium-Eisenphosphat
Logistics
Ursprungsland DE
Zolltarifnummer 85076000
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
