UPSI-1208IP-11U | Bicker Elektronik

UPS in IP housing, UPSI-1208IP-11U

Order No.: 70C1515
EAN: 4251877642381
MPN:
UPSI-1208IP-11U
Series: UPSI

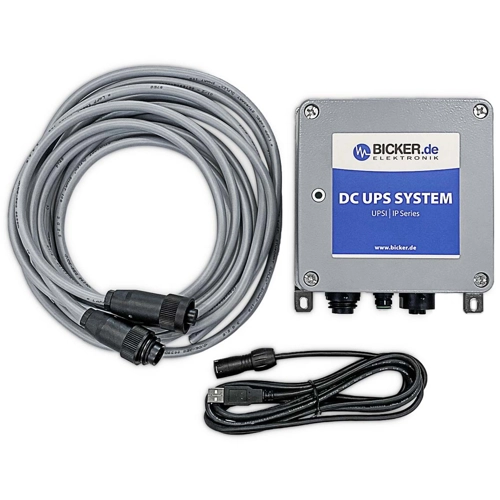

UPSI-1208IP-11U Bicker Elektronik UPS Image 1
UPSI-1208IP-11U Bicker Elektronik UPS Image 2

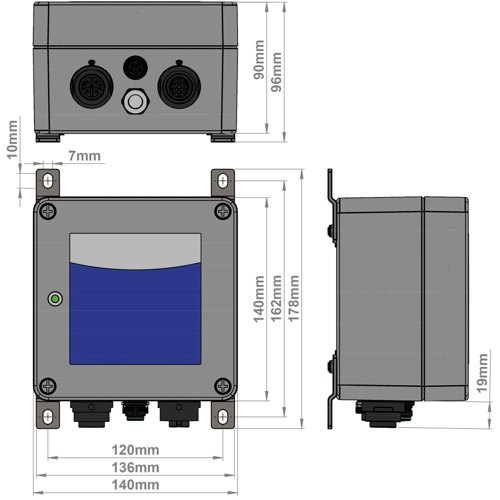

UPSI-1208IP-11U Bicker Elektronik UPS Image 3

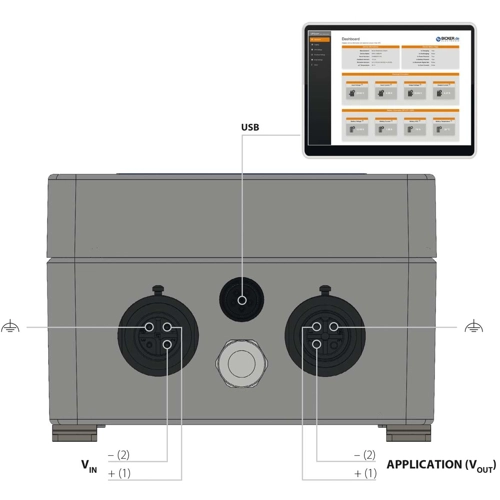

UPSI-1208IP-11U Bicker Elektronik UPS Image 4
Image may differ
Unit Price (€ / pc.)
712.81 € *
Available: 1 pcs.
Leadtime: 1 Week **
Total Price:
712.81 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
712.81 €

UPS, UPSI-1208IP-11U, Bicker Elektronik

This product has been designed for outdoor and industrial use for extreme environments. The robust housing protects electronic parts according to protection classes IP65 and IP67 against jet water and temporary submersion as well as against dust and dirt. The µC-controlled DC-UPS is based on the proven UPSI-technology and features numerous protective and monitoring functions as well as an integrated reboot function, which activates the auto-restart of the computer system, as soon as the input voltage returns during shutdown or later.

Features

  • Outdoor DC-UPS for extreme environments
  • Protection class IP65 / IP67
  • Capacity 25 Wh
  • Robust aluminium enclosure
  • Operating temperature range -20°C to +50 °C
  • Longlife LiFePO4 Battery
Technical specifications
Ausgangsspannungsbereich 12 VDC
Ausgangsstrom 8 A
Breite 140 mm
Eingangsspannungsbereich 11,5-16 VDC
Höhe 140 mm
Länge 90 mm
Leistung 96 W
max. Temperatur 50 °C
min. Temperatur -20 °C
Logistics
Ursprungsland DE
Zolltarifnummer 85044083
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
