Deutsch DE

UPSI-2406DP3 | Bicker Elektronik

UPS DinRail LiFePO4, UPSI-2406DP3

Order No.: 70C1506
EAN: 4251877642732
MPN:
UPSI-2406DP3
Series: UPSI
Bicker Elektronik

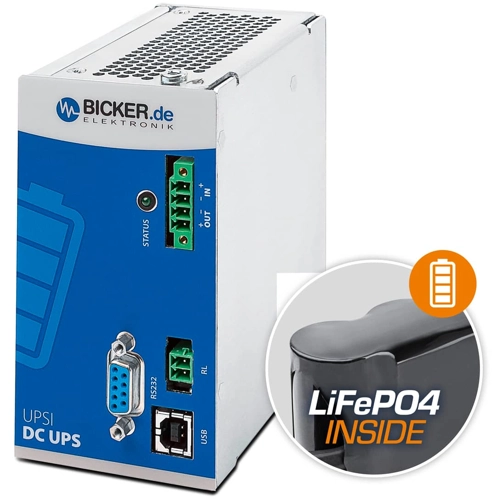

UPSI-2406DP3 Bicker Elektronik UPS Image 1

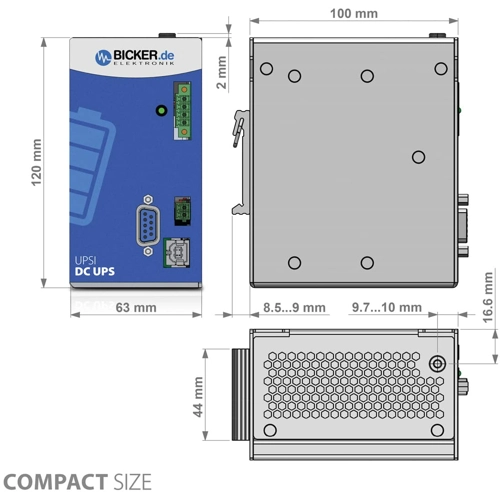

UPSI-2406DP3 Bicker Elektronik UPS Image 2
Image may differ
Print
Key Specification:
Output current 6 A
Output voltage DC 24 VDC
Input voltage AC 22.5-30 VDC
Power 144 W
Show 6 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
380.80 € *
Available: 2 pcs.
Leadtime: 1 Week **
Total Price:
380.80 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
380.80 €
Description
Technical specifications
Download
Logistics
Compliance
Accessory
Variations

UPS, UPSI-2406DP3, Bicker Elektronik

The DC UPS UPSI-2406DP3 with included energy storage has been designed for DIN Rail applications. The robust housing protects electronic parts against coarse pollution. The µC-controlled DC-UPS is based on the proven UPSI-technology and features numerous protective and monitoring functions as well as an integrated reboot function, which activates the auto-restart of the computer system, as soon as the input voltage returns during shutdown or later.

Features

  • Offers up to 6000 cycles
  • Operating temperature range -20…+50°C
  • Intelligent power sharing
  • Regulated output voltage in backup mode
  • Minimum load detection
  • Power fail timer-function
Technical specifications
Output voltage DC 24 VDC
Output current 6 A

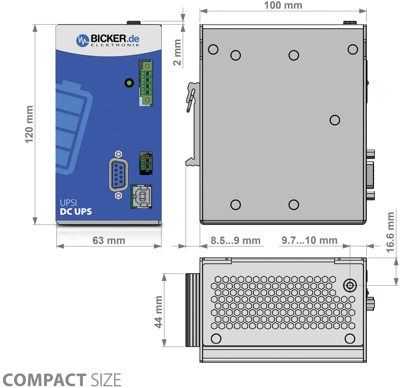

Width 63 mm
Input voltage AC 22.5-30 VDC
Height 120 mm
Length 100 mm
Power 144 W
max. operating temperature 50 °C
min. operating temperature -20 °C
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85044083
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
