UPSI-2406IP-12U | Bicker Elektronik

UPS in IP housing, UPSI-2406IP-12U

Order No.: 70C1516
EAN: 4251877642749
MPN:
UPSI-2406IP-12U
Series: UPSI
Bicker Elektronik
UPSI-2406IP-12U Bicker Elektronik UPS Image 1

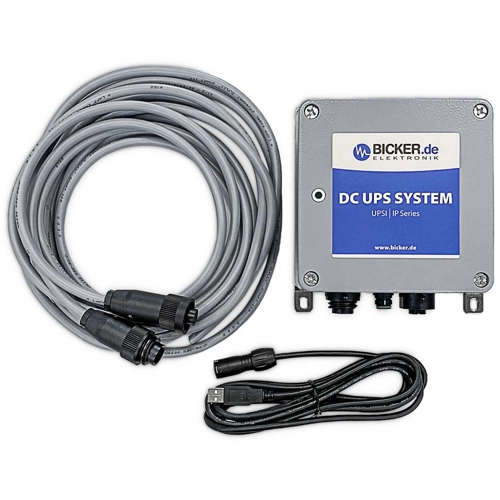

UPSI-2406IP-12U Bicker Elektronik UPS Image 2

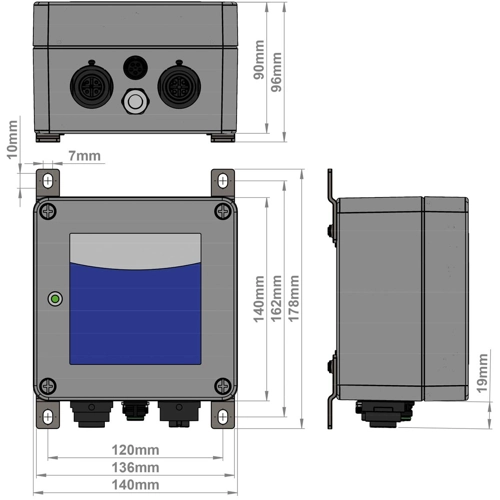

UPSI-2406IP-12U Bicker Elektronik UPS Image 3

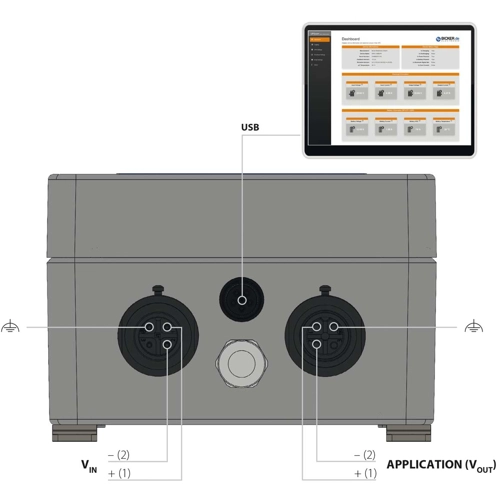

UPSI-2406IP-12U Bicker Elektronik UPS Image 4
Image may differ
Unit Price (€ / pc.)
712.81 € *
Available: 2 pcs.
Leadtime: 1 Week **
Total Price:
712.81 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
712.81 €

UPS, UPSI-2406IP-12U, Bicker Elektronik

This product has been designed for outdoor and industrial use for extreme environments. The robust housing protects electronic parts according to protection classes IP65 and IP67 against jet water and temporary submersion as well as against dust and dirt. The µC-controlled DC-UPS is based on the proven UPSI-technology and features numerous protective and monitoring functions as well as an integrated reboot function, which activates the auto-restart of the computer system, as soon as the input voltage returns during shutdown or later.

Features

  • Outdoor DC-UPS for extreme environments
  • Protection class IP65 / IP67
  • Capacity 33 Wh
  • Robust aluminium enclosure
  • Operating temperature range -20°C to +50 °C
  • Longlife LiFePO4 Battery
Technical specifications
Ausgangsspannungsbereich 24 VDC
Ausgangsstrom 6 A
Breite 140 mm
Eingangsspannungsbereich 22,8-30 VDC
Höhe 140 mm
Länge 90 mm
Leistung 144 W
max. Temperatur 50 °C
min. Temperatur -20 °C
Logistics
Ursprungsland DE
Zolltarifnummer 85044083
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
