09 0036 00 03 | binder

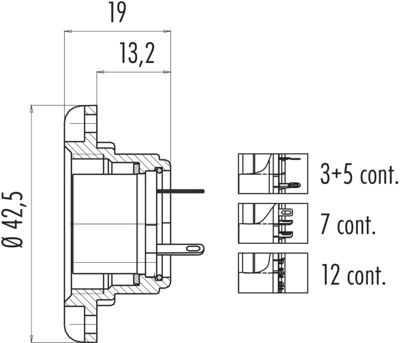

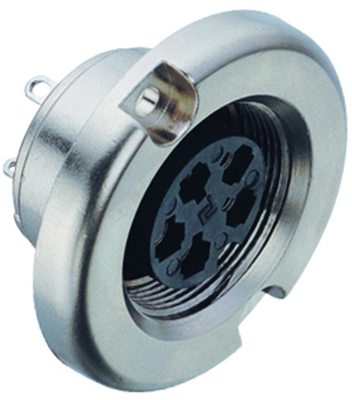

Panel socket, 3 pole, solder cup, screw locking, straight, 09 0036 00 03
Unit Price (€ / pc.)
20.8726 € *
Available: 96 pcs.
Leadtime: On Request **
Total Price:
20.87 € *
Price list
Quantity
Price per unit*
1 pcs.
20.8726 €
10 pcs.
18.3736 €
50 pcs.
17.1122 €
150 pcs.
16.3625 €
500 pcs.
15.5414 €
*incl. VAT plus shipping costs
**Subject to prior sale
Industrial connector, type Binder 691.
Robust design with screw lock.; Contacts: copper tin. Contact finish: silver-plated. Cable connection: solder contacts, 1.5 mm². Contact block: PBT UL 94 V-0. Housing: anodized aluminum alloy. Degree of protection (IEC 60529): IP 40. Cable outlet: 5.0 to 8.0 mm. Test surge voltage: 2950 V. Contact resistance: max. 5.0 mohm. Insulation resistance: min. 10 Gohm. Operating temperatures: - 40 to +85 °C.
With screw lock, type 691.
Material: zinc die-cast.
Technical attributes (type, number of poles, rated voltage/rated current (+40 °C)): 09-0036-00-03, 3-pole, 250 V/10 A
Technical specifications
| Version | Einbaubuchse | |
| Additional parts | bestückt | |
| Shell Material | Aluminiumlegierung | |
| Cable diameter | 5 bis 8 mm | |
| Contact connection | Lötkelch | |
| contact surface | versilbert | |
| Cable cross-section | 1,5 mm² | |
| Assembly | Leiterplattenmontage | |
| Orientation | gerade | |
| Pin number | 3-polig | |
| Type of locking | Schraubverriegelung |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
