09 0054 80 14 | binder

Panel socket, 14 pole, solder cup, screw locking, straight, 09 0054 80 14

Order No.: 66F538
EAN: 4099889727746
MPN:
09 0054 80 14
Series: 680
binder

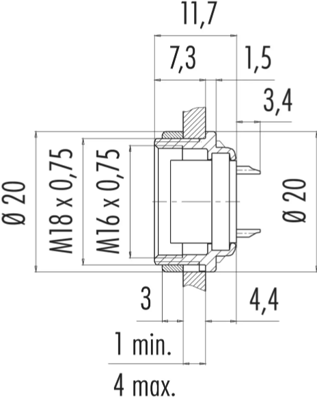

09 0054 80 14 binder Other Circular Connectors Image 1
09 0054 80 14 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
17.8262 € *
Available: 6 pcs.
Available in 5 Days: 87 pcs.
Leadtime: On Request **
Total Price:
17.83 € *
Price list
Quantity
Price per unit*
1 pcs.
17.8262 €
10 pcs.
15.6842 €
50 pcs.
14.6132 €
150 pcs.
13.9825 €
500 pcs.
13.2566 €
*incl. VAT plus shipping costs
**Subject to prior sale

Panel circular connector, type Binder 581/680/682.

With bushing thread. solder connection or solder pin terminals for PCB mounting. Compatible to other brands that have the same contact arrangement; Contacts: female, copper tin. Male contacts: copper zinc. Contact finish: 2- to 8-pole silver-plated, 12- and 14-pole gold-plated. Drilled hole diameter for PCB version: 2- to 8-pole 1.0 mm, 12- and 14-pole 0.8 mm. Cable connection for the solder version: 2- to 8-pole max. 0.75 mm², 12- and 14-pole max. 0.25 mm². Contact carrier: UL 94 V-0. Housing: zinc die-casting, nickel-plated. Interlock: with screws. Degree of protection in plugged state (IEC 60529): IP 40. Contact resistance: 2 to 8 poles: max. 5.0 mohm, 12 poles and more: 3.0 mohm. Insulation resistance: at least 10 Gohm. Insertion cycles: at least 500. Operating temperatures: –40 to +85 °C.

Female panel mount connector, front screw mount, solder terminals, type 680.

Technical attributes (type, number of poles, rated voltage/rated current (40 °C)): 09-0054-80-14, 14-pole, 60 V/3.0 A

Technical specifications
Version panel socket
Additional parts equipped
Shell Material zinc die casting
Cable diameter 3 to 6 mm
Contact connection solder cup
contact surface gold-plated
Cable cross-section 0.25 mm²
Assembly PCB mounting
Orientation straight
Pin number 14 pole
Type of locking screw locking
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
