09 0104 09 02 | binder
Panel socket, 2 pole, solder connection, screw locking, straight, 09 0104 09 02
Unit Price (€ / pc.)
9.2939 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
9.29 € *
Price list
Quantity
Price per unit*
1 pcs.
9.2939 €
10 pcs.
8.6394 €
50 pcs.
8.0444 €
100 pcs.
7.2352 €
*incl. VAT plus shipping costs
**Subject to prior sale

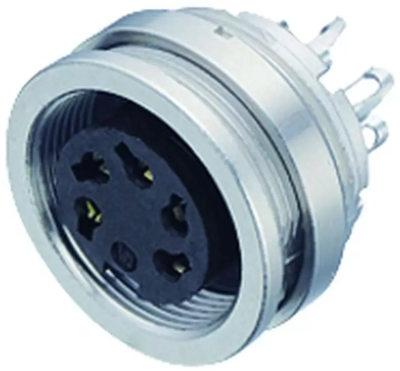

Female panel mount connector, 09 0104 09 02, binder
M16 IP67 Female panel mount connector, Contacts: 2, unshielded, solder, IP67, UL.
Technical specifications
| Version | panel socket | |
| Additional parts | equipped | |
| Shell Material | zinc die casting | |
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Cable cross-section | 0.75 mm² | |
| Assembly | panel mounting | |
| Orientation | straight | |
| Pin number | 2 pole | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
