09 0112 300 04 | binder

Panel socket, 4 pole, solder connection, screw locking, straight, 09 0112 300 04

Order No.: 70P1422
EAN: 4099891702625
MPN:
09 0112 300 04
Series: 723
binder

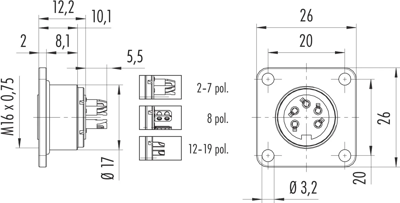

09 0112 300 04 binder Other Circular Connectors Image 1

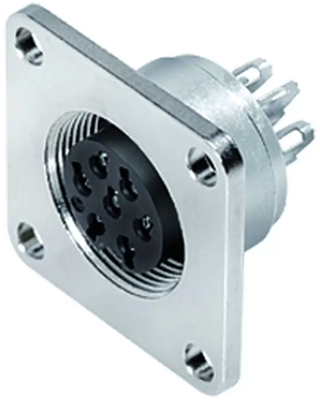

09 0112 300 04 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
10.9718 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
10.97 € *
Price list
Quantity
Price per unit*
1 pcs.
10.9718 €
10 pcs.
10.2221 €
50 pcs.
9.4962 €
100 pcs.
8.5442 €
*incl. VAT plus shipping costs
**Subject to prior sale

Square female panel mount connector, 09 0112 300 04, binder

M16 IP67 Square female panel mount connector, Contacts: 4, unshielded, solder, IP67, UL.

Technical specifications
Version panel socket
Additional parts equipped
Shell Material zinc die casting
Contact connection solder connection
contact surface silver-plated
Cable cross-section 0.75 mm²
Assembly panel mounting
Orientation straight
Pin number 4 pole
Type of locking screw locking
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
