09 0114 25 05 | binder

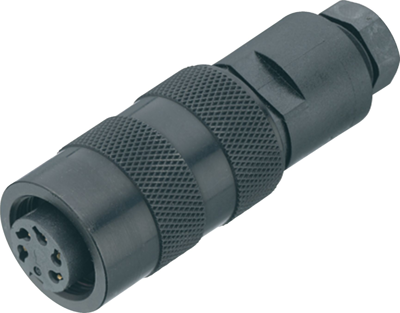

Jack, 5 pole, solder connection, screw locking, straight, 09 0114 25 05
Unit Price (€ / pc.)
29.2026 € *
Available: 11 pcs.
Leadtime: On Request **
Total Price:
29.20 € *
Price list
Quantity
Price per unit*
1 pcs.
29.2026 €
10 pcs.
25.6921 €
50 pcs.
23.9547 €
150 pcs.
22.8956 €
500 pcs.
21.7294 €
*incl. VAT plus shipping costs
**Subject to prior sale
Female cable connector, 09-0114-25-05, Franz Binder
M16 IP67 Female connector, poles 5, 4.0-6.0 mm, unshielded, solder, IP67
Technical specifications
| Version | jack | |
| Shell Material | PA | |
| Cable diameter | 4 to 6 mm | |
| Contact connection | solder connection | |
| contact surface | silver-plated | |
| Cable cross-section | 0.75 mm² | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 5 pole | |
| Type of locking | screw locking |
Download
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
