09 0115 700 05 | binder

Name: Panel plug, 5 pole, crimp connection, screw locking, straight, 09 0115 700 05
Brand: binder
SKU: 70P1434
Price: 7.64 EUR
Availability: OutOfStock

Panel plug, 5 pole, crimp connection, screw locking, straight, 09 0115 700 05

Order No.: 70P1434

EAN: 4099891702700

MPN:

09 0115 700 05

Series: 723

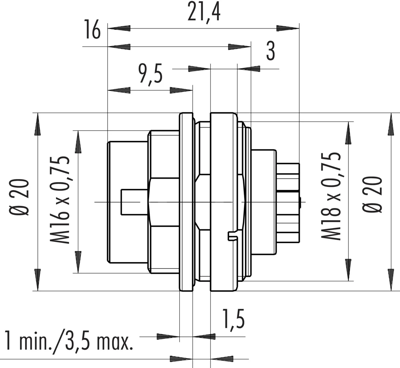

09 0115 700 05 binder Other Circular Connectors Image 2

Image may differ

Key Specification:

Ausführung Einbaustecker

Polzahl 5-polig

Orientierung gerade

Kontaktanschluss Crimpanschluss

Show 5 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

7.6398 € *

Available: 0 pcs.

Leadtime: On Request **

Add to Cart

Total Price:

7.64 € *

Price list

Quantity

Price per unit*

1 pcs.

7.6398 €

10 pcs.

6.8782 €

50 pcs.

6.0571 €

100 pcs.

5.4502 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Male panel mount connector, 09 0115 700 05, binder

M16 IP67 Male panel mount connector, Contacts: 5, unshielded, crimping, IP67, UL.

Technical specifications

	Ausführung	Einbaustecker
	Bestückung	unbestückt
	Gehäusematerial	Zinkdruckguss
	Kontaktanschluss	Crimpanschluss
	Montage	Panelmontage
	Orientierung	gerade
	Polzahl	5-polig
	Verriegelung	Schraubverriegelung

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Herstellerkatalog - DE/EN Herstellerkatalog

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	DE
Zolltarifnummer	85369010

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	No
