09 0117 25 05 | binder

Plug, 5 pole, solder connection, screw locking, straight, 09 0117 25 05

Order No.: 70P1449
EAN: 4099891702809
MPN:
09 0117 25 05
Series: 723
binder

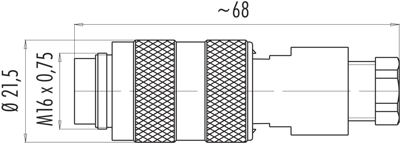

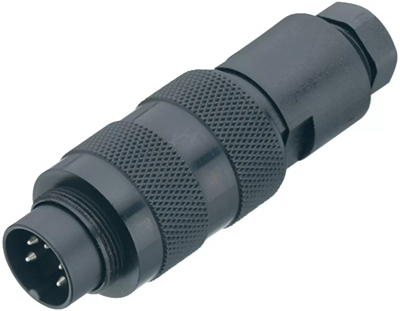

09 0117 25 05 binder Other Circular Connectors Image 1
09 0117 25 05 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
21.0987 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
21.10 € *
Price list
Quantity
Price per unit*
1 pcs.
21.0987 €
10 pcs.
19.8373 €
50 pcs.
18.6473 €
100 pcs.
17.5287 €
*incl. VAT plus shipping costs
**Subject to prior sale

Male cable connector, 09 0117 25 05, binder

M16 IP67 Male cable connector, Contacts: 5 (stereo), 4.0-6.0 mm, unshielded, solder, IP67.

Technical specifications
Version plug
Additional parts equipped
Shell Material PA
Cable diameter 4 to 6 mm
Contact connection solder connection
contact surface silver-plated
Cable cross-section 0.75 mm²
Assembly cable assembly
Orientation straight
Pin number 5 pole
Type of locking screw locking
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
