09 0123 00 06 | binder

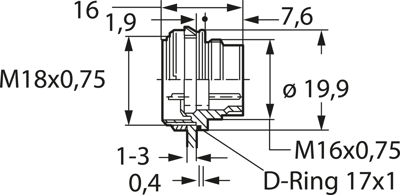

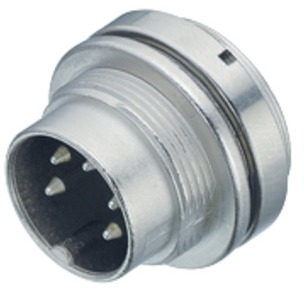

Panel plug, 6 pole, solder cup, screw locking, straight, 09 0123 00 06
Unit Price (€ / pc.)
6.9377 € *
Available: 28 pcs.
Available in 5 Days: 100 pcs.
Leadtime: On Request **
Total Price:
6.94 € *
Price list
Quantity
Price per unit*
1 pcs.
6.9377 €
10 pcs.
6.0928 €
50 pcs.
5.6882 €
150 pcs.
5.4383 €
500 pcs.
5.1527 €
*incl. VAT plus shipping costs
**Subject to prior sale
Receptacles for Circular connector, type 723.
Screw mount from the rear, with solder terminals, robust, water-proof, with screwed cable gland. Compatible with other products which have the same contact arrangement.
number of poles: 6-pole
Rated voltage: 250 V
Rated current (40 °C): 5,0 A
Male contacts: copper zinc
Contact finish: silver-plated
Cable connection: solder contacts, max. 0.75 mm²
Contact carrier: PBT to UL 94 V-0
Flanged housing: zinc die-cast, nickel-plated
Degree of protection in mated state (IEC 60529): IP 67
Test voltage: 910 V
Contact resistance: max. 5.0 mohm
Insulation resistance: at least 10 Gohm
Insertion cycles: at least 500
Operating temperatures: - 30 to +95 °C
Type: 09-0123-00-06
Technical specifications
| Version | panel plug | |
| Additional parts | equipped | |
| Shell Material | zinc die casting | |
| Contact connection | solder cup | |
| contact surface | silver-plated | |
| Cable cross-section | 0.75 mm² | |
| Assembly | PCB mounting | |
| Orientation | straight | |
| Pin number | 6 pole | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
