09 0123 300 06 | binder
Panel plug, 6 pole, solder connection, screw locking, straight, 09 0123 300 06
Unit Price (€ / pc.)
11.1384 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
11.14 € *
Price list
Quantity
Price per unit*
1 pcs.
11.1384 €
10 pcs.
10.3649 €
50 pcs.
9.6390 €
100 pcs.
8.6751 €
*incl. VAT plus shipping costs
**Subject to prior sale

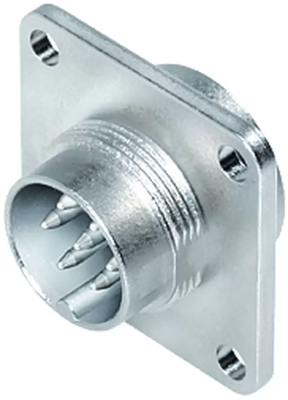

Square male panel mount connector, 09 0123 300 06, binder
M16 IP67 Square male panel mount connector, Contacts: 6 DIN, unshielded, solder, IP67, UL.
Technical specifications
| Version | Einbaustecker | |
| Additional parts | bestückt | |
| Shell Material | Zinkdruckguss | |
| Contact connection | Lötanschluss | |
| contact surface | versilbert | |
| Cable cross-section | 0,75 mm² | |
| Assembly | Panelmontage | |
| Orientation | gerade | |
| Pin number | 6-polig | |
| Type of locking | Schraubverriegelung |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
