09 0124 780 06 | binder

Name: Panel socket, 6 pole, crimp connection, screw locking, straight, 09 0124 780 06
Brand: binder
SKU: 70P1483
Price: 9.59 EUR
Availability: OutOfStock

Panel socket, 6 pole, crimp connection, screw locking, straight, 09 0124 780 06

Order No.: 70P1483

EAN: 4099891703097

MPN:

09 0124 780 06

Series: 723

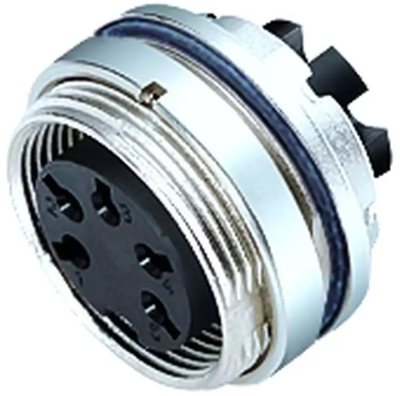

09 0124 780 06 binder Other Circular Connectors Image 2

Image may differ

Key Specification:

Ausführung Einbaubuchse

Polzahl 6-polig

Orientierung gerade

Kontaktanschluss Crimpanschluss

Show 5 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

9.5914 € *

Available: 0 pcs.

Leadtime: On Request **

Add to Cart

Total Price:

9.59 € *

Price list

Quantity

Price per unit*

1 pcs.

9.5914 €

10 pcs.

8.6275 €

50 pcs.

7.9492 €

100 pcs.

6.9853 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Female panel mount connector, 09 0124 780 06, binder

M16 IP67 Female panel mount connector, Contacts: 6 DIN, unshielded, crimping, IP67, UL, front fastened.

Technical specifications

	Ausführung	Einbaubuchse
	Bestückung	unbestückt
	Gehäusematerial	Zinkdruckguss
	Kontaktanschluss	Crimpanschluss
	Montage	Panelmontage
	Orientierung	gerade
	Polzahl	6-polig
	Verriegelung	Schraubverriegelung

Show similar products 0

Download

Herstellerkatalog - DE/EN Herstellerkatalog

Konformitätsdeklaration - EN Konformitätsdeklaration

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	DE
Zolltarifnummer	85369010

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	No
