09 0128 370 07 | binder

Name: Panel socket, 7 pole, crimp connection, screw locking, straight, 09 0128 370 07
Brand: binder
SKU: 70P1501
Price: 9.62 EUR
Availability: OutOfStock

Panel socket, 7 pole, crimp connection, screw locking, straight, 09 0128 370 07

Order No.: 70P1501

EAN: 4099891703226

MPN:

09 0128 370 07

Series: 723

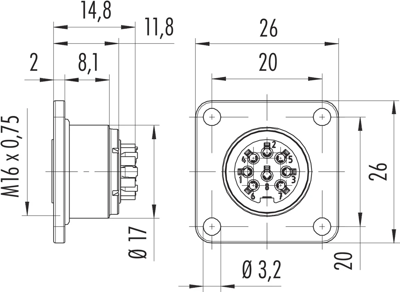

09 0128 370 07 binder Other Circular Connectors Image 2

Image may differ

Key Specification:

Ausführung Einbaubuchse

Polzahl 7-polig

Orientierung gerade

Kontaktanschluss Crimpanschluss

Show 5 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

9.6152 € *

Available: 0 pcs.

Leadtime: On Request **

Add to Cart

Total Price:

9.62 € *

Price list

Quantity

Price per unit*

1 pcs.

9.6152 €

10 pcs.

8.9369 €

50 pcs.

8.3181 €

100 pcs.

7.4851 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

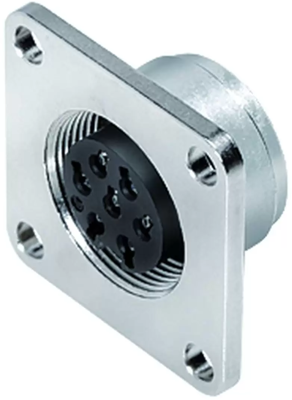

Square female panel mount connector, 09 0128 370 07, binder

M16 IP67 Square female panel mount connector, Contacts: 7, unshielded, crimping, IP67, UL.

Technical specifications

	Ausführung	Einbaubuchse
	Bestückung	unbestückt
	Gehäusematerial	Zinkdruckguss
	Kontaktanschluss	Crimpanschluss
	Montage	Panelmontage
	Orientierung	gerade
	Polzahl	7-polig
	Verriegelung	Schraubverriegelung

Show similar products 0

Download

Herstellerkatalog - DE/EN Herstellerkatalog

Konformitätsdeklaration - EN Konformitätsdeklaration

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	DE
Zolltarifnummer	85369010

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes
