09 0146 70 07 | binder

Angle coupling, 7 pole, solder cup, screw locking, angled, 09 0146 70 07

Order No.: 66F392
EAN: 4099889727326
MPN:
09 0146 70 07
Series: 682
binder

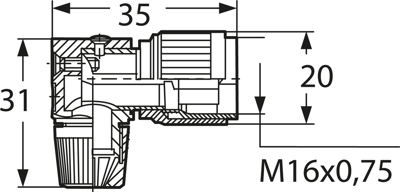

09 0146 70 07 binder Other Circular Connectors Image 1

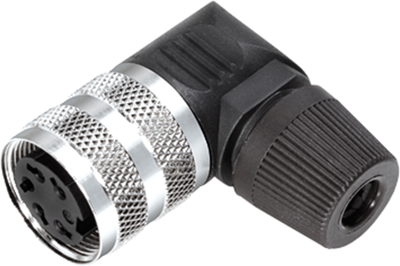

09 0146 70 07 binder Other Circular Connectors Image 2

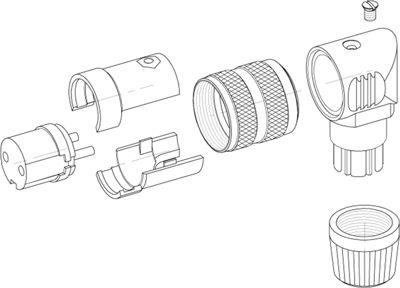

09 0146 70 07 binder Other Circular Connectors Image 3
Image may differ
Unit Price (€ / pc.)
13.9468 € *
Available: 45 pcs.
Available in 5 Days: 100 pcs.
Leadtime: On Request **
Total Price:
13.95 € *
Price list
Quantity
Price per unit*
1 pcs.
13.9468 €
10 pcs.
12.2689 €
50 pcs.
11.4359 €
150 pcs.
10.9361 €
500 pcs.
10.3887 €
*incl. VAT plus shipping costs
**Subject to prior sale

Circular connector, type Binder 682.

Compatible with other brands having the same contact arrangement; Contacts: female, copper tin. Male contacts: copper zinc. Contact finish: silver-plated. Cable termination: solder terminals, max. 0.75 mm². Male/female contact carrier: PBT in accordance with UL 94 V-0. Screw interlock. Degree of protection when inserted (IEC 60529): IP 40. Test surge voltage: 910 VAC. Contact resistance: max. 5.0 mohm. Insulation resistance: at least 10 Gohm. Insertion cycles: at least 500. Operating temperatures: - 40 to +85 °C.

Female angled connectors, type 682.

In rugged plastic housing made of PA 66 (UL 94 HB), for 4.0 to 6.0 mm cable entry, with pinch ring strain relief.

Technical attributes (type, number of poles, rated voltage/rated current (40 °C)): 09-0146-70-07, 7-pole, 125 V/5.0 A

Technical specifications
Version angle coupling
Additional parts equipped
Shell Material PA
Cable diameter 4 to 6 mm
Contact connection solder cup
contact surface silver-plated
Cable cross-section 0.75 mm²
Assembly cable assembly
Orientation angled
Pin number 7 pole
Type of locking screw locking
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
