09 0166 72 24 | binder
Angle coupling, 24 pole, solder connection, screw locking, angled, 09 0166 72 24
Unit Price (€ / pc.)
29.8809 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
29.88 € *
Price list
Quantity
Price per unit*
1 pcs.
29.8809 €
10 pcs.
28.0840 €
25 pcs.
26.1205 €
50 pcs.
24.2879 €
*incl. VAT plus shipping costs
**Subject to prior sale

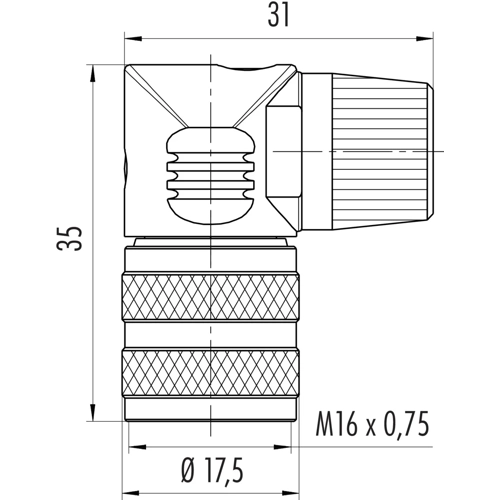

Female angled connector, 09 0166 72 24, binder
M16 IP40 Female angled connector, Contacts: 24, 6.0-8.0 mm, unshielded, solder, IP40.
Technical specifications
| Version | angle coupling | |
| Additional parts | equipped | |
| Shell Material | PA | |
| Cable diameter | 6 to 8 mm | |
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Cable cross-section | 0.14 mm² | |
| Assembly | cable assembly | |
| Orientation | angled | |
| Pin number | 24 pole | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
