09 0172 25 08 | binder

Jack, 8 pole, solder connection, screw locking, straight, 09 0172 25 08

Order No.: 70P1517
EAN: 4099891703363
MPN:
09 0172 25 08
Series: 723
binder

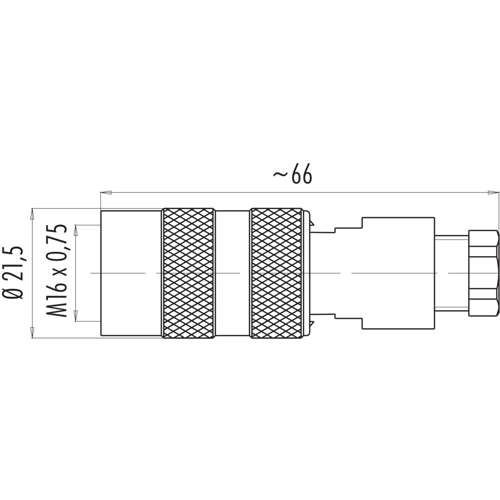

09 0172 25 08 binder Other Circular Connectors Image 1
09 0172 25 08 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
23.8476 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
23.85 € *
Price list
Quantity
Price per unit*
1 pcs.
23.8476 €
10 pcs.
22.4196 €
50 pcs.
21.0749 €
100 pcs.
19.8016 €
*incl. VAT plus shipping costs
**Subject to prior sale

Female cable connector, 09 0172 25 08, binder

M16 IP67 Female cable connector, Contacts: 8 DIN, 4.0-6.0 mm, unshielded, solder, IP67.

Technical specifications
Version jack
Additional parts equipped
Shell Material PA
Cable diameter 4 to 6 mm
Contact connection solder connection
contact surface silver-plated
Cable cross-section 0.75 mm²
Assembly cable assembly
Orientation straight
Pin number 8 pole
Type of locking screw locking
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
