09 0305 09 03 | binder

Plug, 3 pole, solder connection, screw locking, straight, 09 0305 09 03

Order No.: 70P0621
EAN: 4099891698171
MPN:
09 0305 09 03
Series: 680
binder

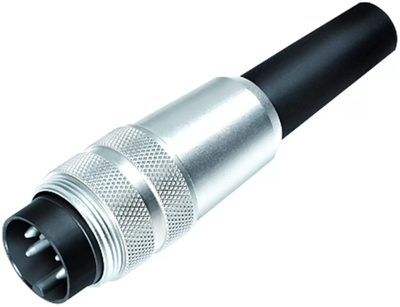

09 0305 09 03 binder Other Circular Connectors Image 1

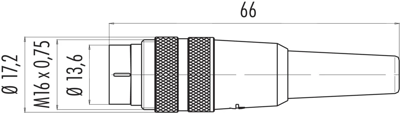

09 0305 09 03 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
11.3169 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
11.32 € *
Price list
Quantity
Price per unit*
1 pcs.
11.3169 €
10 pcs.
10.5315 €
50 pcs.
9.7937 €
100 pcs.
8.8179 €
*incl. VAT plus shipping costs
**Subject to prior sale

Male cable connector, 09 0305 09 03, binder

M16 IP40 Male cable connector, Contacts: 3 DIN, 3.0-6.0 mm, unshielded, solder, IP40.

Technical specifications
Version plug
Additional parts equipped
Shell Material PA
Cable diameter 3 to 6 mm
Contact connection solder connection
contact surface gold-plated
Cable cross-section 0.75 mm²
Assembly cable assembly
Orientation straight
Pin number 3 pole
Type of locking screw locking
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
