09 0308 99 03 | binder

Panel socket, 3 pole, THT, screw locking, straight, 09 0308 99 03

Order No.: 70P0630
EAN: 4099891698263
MPN:
09 0308 99 03
Series: 680
binder

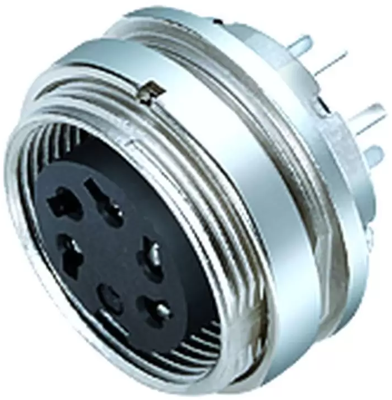

09 0308 99 03 binder Other Circular Connectors Image 1
09 0308 99 03 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
8.5085 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
8.51 € *
Price list
Quantity
Price per unit*
1 pcs.
8.5085 €
10 pcs.
7.6517 €
50 pcs.
6.7473 €
100 pcs.
6.0690 €
*incl. VAT plus shipping costs
**Subject to prior sale

Female panel mount connector, 09 0308 99 03, binder

M16 IP40 Female panel mount connector, Contacts: 3 DIN, unshielded, THT, IP40, front fastened.

Technical specifications
Version panel socket
Additional parts equipped
Shell Material zinc die casting
Contact connection THT
contact surface gold-plated
Assembly panel mounting
Orientation straight
Pin number 3 pole
Type of locking screw locking
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
