09 0309 09 04 | binder
Plug, 4 pole, solder connection, screw locking, straight, 09 0309 09 04
Unit Price (€ / pc.)
14.0182 € *
Available: 43 pcs.
Leadtime: On Request **
Total Price:
14.02 € *
Price list
Quantity
Price per unit*
1 pcs.
14.0182 €
10 pcs.
12.3284 €
50 pcs.
11.4835 €
150 pcs.
10.9837 €
500 pcs.
10.4363 €
*incl. VAT plus shipping costs
**Subject to prior sale

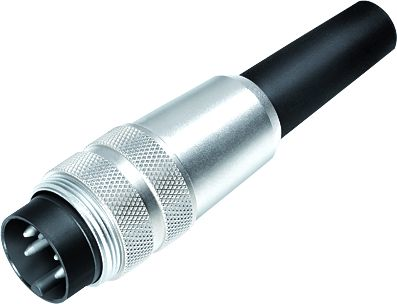

Male cable connector, 09-0309-09-04, Franz Binder
M16 IP40 Male connector, poles 4, 3.0-6.0 mm, unshielded, solder, IP40
Technical specifications
| Version | plug | |
| Shell Material | PA | |
| Cable diameter | 3 to 6 mm | |
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Cable cross-section | 0.75 mm² | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 4 pole | |
| Type of locking | screw locking |
Download
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
