09 0310 09 04 | binder

Jack, 4 pole, solder connection, screw locking, straight, 09 0310 09 04

Order No.: 70P0632
EAN: 4099891698287
MPN:
09 0310 09 04
Series: 680
binder
09 0310 09 04 binder Other Circular Connectors Image 1
09 0310 09 04 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
10.4006 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
10.40 € *
Price list
Quantity
Price per unit*
1 pcs.
10.4006 €
10 pcs.
9.6747 €
50 pcs.
8.9845 €
100 pcs.
8.1039 €
*incl. VAT plus shipping costs
**Subject to prior sale

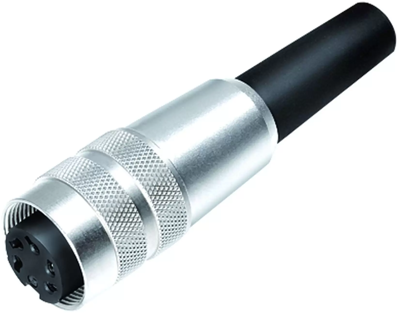

Female cable connector, 09 0310 09 04, binder

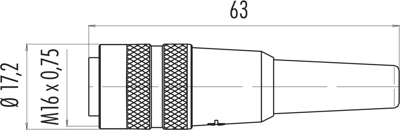

M16 IP40 Female cable connector, Contacts: 4, 3.0-6.0 mm, unshielded, solder, IP40.

Technical specifications
Version jack
Additional parts equipped
Shell Material PA
Cable diameter 3 to 6 mm
Contact connection solder connection
contact surface gold-plated
Cable cross-section 0.75 mm²
Assembly cable assembly
Orientation straight
Pin number 4 pole
Type of locking screw locking
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
