09 0322 09 06 | binder
Jack, 6 pole, solder connection, screw locking, straight, 09 0322 09 06
Unit Price (€ / pc.)
11.7691 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
11.77 € *
Price list
Quantity
Price per unit*
1 pcs.
11.7691 €
10 pcs.
10.9361 €
50 pcs.
10.1745 €
100 pcs.
9.1630 €
*incl. VAT plus shipping costs
**Subject to prior sale

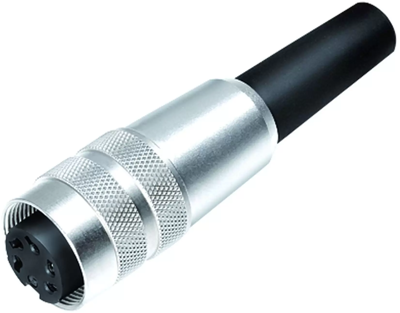

Female cable connector, 09 0322 09 06, binder
M16 IP40 Female cable connector, Contacts: 6 DIN, 3.0-6.0 mm, unshielded, solder, IP40.
Technical specifications
| Version | jack | |
| Additional parts | equipped | |
| Shell Material | PA | |
| Cable diameter | 3 to 6 mm | |
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Cable cross-section | 0.75 mm² | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 6 pole | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
