09 0324 290 06 | binder

Panel socket, 6 pole, solder connection, screw locking, straight, 09 0324 290 06

Order No.: 66P0627
EAN: 4099889699142
MPN:
09 0324 290 06
Series: 680
binder

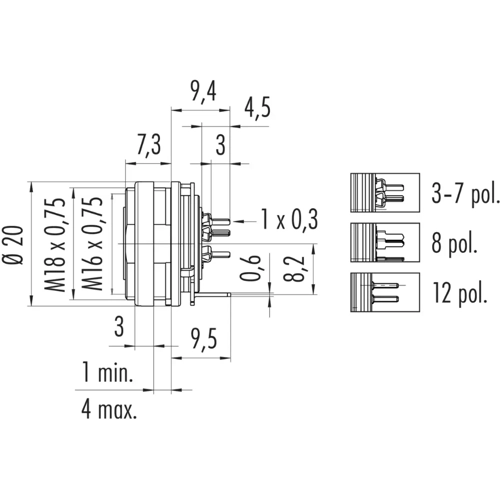

09 0324 290 06 binder Other Circular Connectors Image 1
09 0324 290 06 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
9.4724 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
9.47 € *
Price list
Quantity
Price per unit*
1 pcs.
9.4724 €
10 pcs.
8.8060 €
50 pcs.
8.1991 €
100 pcs.
7.3780 €
*incl. VAT plus shipping costs
**Subject to prior sale

Miniature connector, 09-0324-290-06, BINDER

M16 IP40 Female panel mount connector, Contacts: 6 DIN, shieldable, THT, IP40, front mounting.

Features

  • Contact material: CuSn (Bronze)
  • Pollution degree: 1
  • Overvoltage category: I
Technical specifications
Version panel socket
Contact connection solder connection
contact surface silver-plated
Assembly front mounting
Orientation straight
Pin number 6 pole
Type of locking screw locking
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
