09 0324 700 06 | binder

Name: Panel socket, 6 pole, crimp connection, screw locking, straight, 09 0324 700 06
Brand: binder
SKU: 70P0683
Price: 6.74 EUR
Availability: OutOfStock

Panel socket, 6 pole, crimp connection, screw locking, straight, 09 0324 700 06

Order No.: 70P0683

EAN: 4099891698690

MPN:

09 0324 700 06

Series: 680

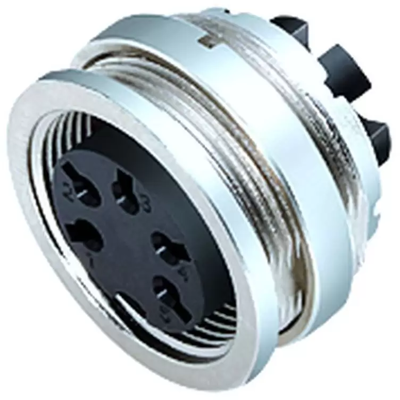

09 0324 700 06 binder Other Circular Connectors Image 2

Image may differ

Key Specification:

Ausführung Einbaubuchse

Polzahl 6-polig

Orientierung gerade

Kontaktanschluss Crimpanschluss

Show 5 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

6.7354 € *

Available: 0 pcs.

Leadtime: On Request **

Add to Cart

Total Price:

6.74 € *

Price list

Quantity

Price per unit*

1 pcs.

6.7354 €

10 pcs.

6.0571 €

50 pcs.

5.3312 €

100 pcs.

4.6410 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Female panel mount connector, 09 0324 700 06, binder

M16 IP40 Female panel mount connector, Contacts: 6 DIN, unshielded, crimping, IP40.

Technical specifications

	Ausführung	Einbaubuchse
	Bestückung	unbestückt
	Gehäusematerial	Zinkdruckguss
	Kontaktanschluss	Crimpanschluss
	Montage	Panelmontage
	Orientierung	gerade
	Polzahl	6-polig
	Verriegelung	Schraubverriegelung

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Herstellerkatalog - DE/EN Herstellerkatalog

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	DE
Zolltarifnummer	85369010

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	No

Accessory
