09 0328 00 07 | binder

Panel socket, 7 pole, solder cup, screw locking, straight, 09 0328 00 07

Order No.: 66F512
EAN: 4099889727616
MPN:
09 0328 00 07
Series: 680
binder
09 0328 00 07 binder Other Circular Connectors Image 1

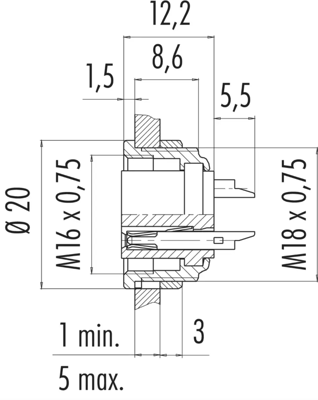

09 0328 00 07 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
7.6874 € *
Available: 12 pcs.
Available in 5 Days: 12 pcs.
Leadtime: On Request **
Total Price:
7.69 € *
Price list
Quantity
Price per unit*
1 pcs.
7.6874 €
10 pcs.
6.7830 €
100 pcs.
5.9381 €
250 pcs.
5.7120 €
1000 pcs.
5.3312 €
*incl. VAT plus shipping costs
**Subject to prior sale

Panel circular connector, type Binder 680.

With bushing thread. solder connection or solder pin terminals for PCB mounting. Compatible to other brands that have the same contact arrangement; Contacts: female, copper tin. Male contacts: copper zinc.Contact finish: silver-plated. Drilled hole diameter for PCB version: 1.0 mm. Cable connection for the solder version: max. 0.75 mm². Contact carrier: UL 94 V-0. Housing: zinc die-casting, nickel-plated.Interlock: with screws. Degree of protection in plugged state (IEC 60529): IP 40. Contact resistance: max. 5.0 mohm. Insulation resistance: at least 10 Gohm. Insertion cycles: at least 500. Operating temperatures: - 40 to +85 °C.

Female panel mount connector, rear screw mount, solder terminals, type 680.

Technical attributes (type, number of poles, rated voltage/rated current (40 °C)): 09-0328-00-07, 7-pole, 125 V/5.0 A

Technical specifications
Version panel socket
Additional parts equipped
Shell Material zinc die casting
Cable diameter 3 to 6 mm
Contact connection solder cup
contact surface silver-plated
Cable cross-section 0.75 mm²
Assembly PCB mounting
Orientation straight
Pin number 7 pole
Type of locking screw locking
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
