09 0335 00 19 | binder

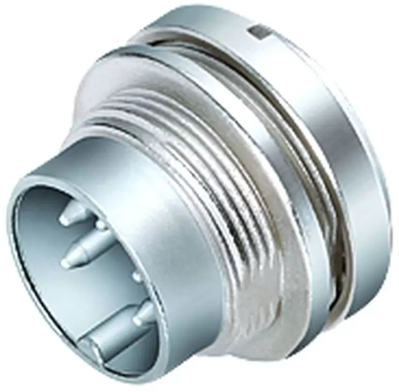

Panel plug, 19 pole, solder connection, screw locking, straight, 09 0335 00 19
Unit Price (€ / pc.)
16.3149 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
16.31 € *
Price list
Quantity
Price per unit*
1 pcs.
16.3149 €
10 pcs.
15.1725 €
50 pcs.
14.1134 €
100 pcs.
13.1257 €
*incl. VAT plus shipping costs
**Subject to prior sale
Male panel mount connector, 09 0335 00 19, binder
M16 IP40 Male panel mount connector, Contacts: 19, unshielded, solder, IP40.
Technical specifications
| Version | panel plug | |
| Additional parts | equipped | |
| Shell Material | zinc die casting | |
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Cable cross-section | 0.25 mm² | |
| Assembly | panel mounting | |
| Orientation | straight | |
| Pin number | 19 pole | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
