09 0341 00 14 | binder

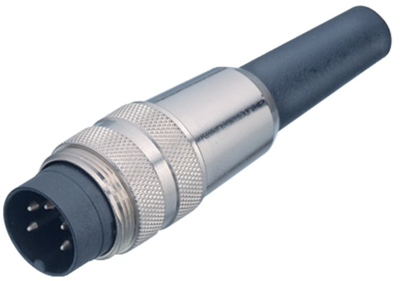

Plug, 14 pole, solder cup, screw locking, straight, 09 0341 00 14
Circular connector, type Binder 680
Compatible with other brands having the same contact arrangement; Contacts: female, copper tin. Male contacts: copper zinc. Contact finish: gold-plated. Cable termination: solder terminals, max. 0.25 mm².Male/female contact carrier: PBT in accordance with UL 94 V-0. Screw interlock. Degree of protection when inserted (IEC 60529): IP 40. Test surge voltage: 550 VAC . Contact resistance : max. 3.0 mohm.Insulation resistance: at least 10 Gohm. Insertion cycles: at least 500. Operating temperatures: - 40 to +85 °C.
Cable plug connectors, straight, type 680.

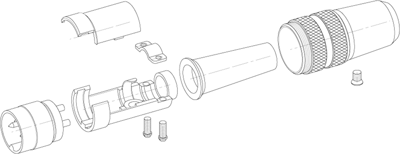

With collar housing made of nickel-plated brass, two-piece inner housing made of plastic, and contact insert with guide collar made of plastic, solder lug for ground connection; Cable entry: 4.0 to 6.0 mm.
Technical attributes (type, number of poles, rated voltage/rated current (40 °C)): 09-0341-00-14, 14-pole, 60 V/3.0 A
| Version | Stecker | |
| Additional parts | bestückt | |
| Shell Material | PA | |
| Cable diameter | 4 bis 6 mm | |
| Contact connection | Lötkelch | |
| contact surface | vergoldet | |
| Cable cross-section | 0,25 mm² | |
| Assembly | Kabelmontage | |
| Orientation | gerade | |
| Pin number | 14-polig | |
| Type of locking | Schraubverriegelung |
| Country of origin | DE |
| Customs tariff number | 85369010 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
