09 0342 00 14 | binder

Jack, 14 pole, solder connection, screw locking, straight, 09 0342 00 14

Order No.: 70P0716
EAN: 4099891698966
MPN:
09 0342 00 14
Series: 680

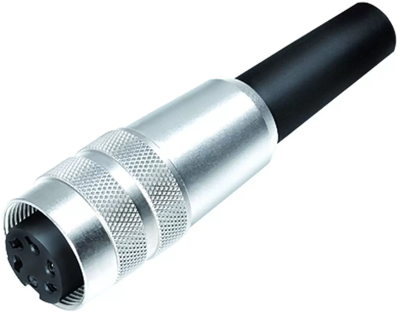

09 0342 00 14 binder Other Circular Connectors Image 1

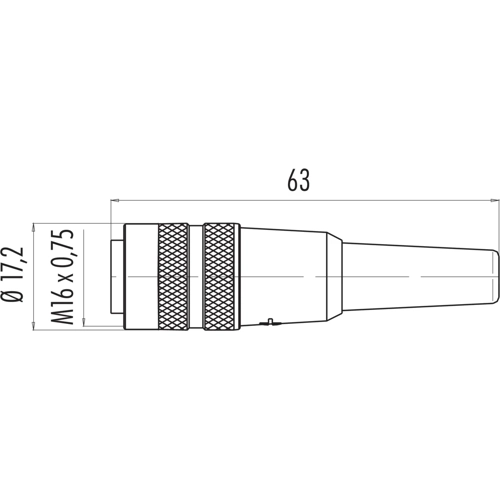

09 0342 00 14 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
17.3145 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
17.31 € *
Price list
Quantity
Price per unit*
1 pcs.
17.3145 €
10 pcs.
16.2911 €
50 pcs.
15.3034 €
100 pcs.
14.3871 €
*incl. VAT plus shipping costs
**Subject to prior sale

Female cable connector, 09 0342 00 14, binder

M16 IP40 Female cable connector, Contacts: 14, 3.0-6.0 mm, unshielded, solder, IP40.

Technical specifications
Version Kupplung
Cable cross-section 0,25 mm²
Pin number 14-polig
Orientation gerade
Contact connection Lötanschluss
Type of locking Schraubverriegelung
Cable diameter 3 bis 6 mm
Assembly Kabelmontage
Additional parts bestückt
contact surface vergoldet
Shell Material PA
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
