09 0468 00 12 | binder
Jack, 12 pole, solder cup, bayonet locking, straight, 09 0468 00 12
Unit Price (€ / pc.)
43.5064 € *
Available: 2 pcs.
Leadtime: On Request **
Total Price:
43.51 € *
Price list
Quantity
Price per unit*
1 pcs.
43.5064 €
5 pcs.
40.9003 €
15 pcs.
39.3295 €
50 pcs.
37.5921 €
150 pcs.
36.0332 €
*incl. VAT plus shipping costs
**Subject to prior sale

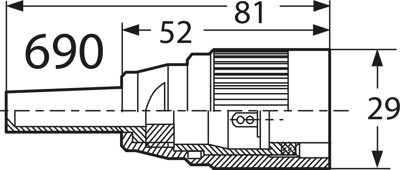

Industrial connector, type Binder 690.
Robust design with bayonet lock.; Contacts: copper tin. Contact finish: silver-plated. Cable connection:solder contacts, 0.75 mm². Contact block: PET UL 94 V-0. Housing: anodized aluminum alloy. Degree of protection (IEC 60529): IP 40. Cable outlet: 5.0 to 8.0 mm. Test surge voltage: 1750 V. Contact resistance: max. 8.0 mohm. Insulation resistance: min. 10 Gohm. Operating temperatures: - 40 to +85 °C.

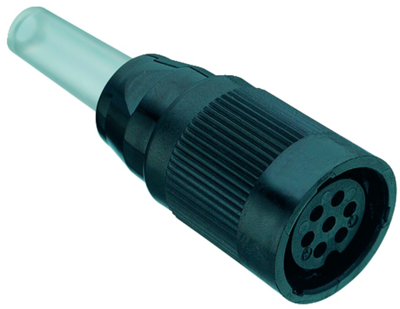

Female cable connectors with bayonet lock, type 690.
Technical attributes (type, number of poles, rated voltage/rated current (+40 °C)): 09-0468-00-12, 12-pole, 125 V/5.0 A
Technical specifications
| Version | Kupplung | |
| Cable cross-section | 0,75 mm² | |
| Pin number | 12-polig | |
| Orientation | gerade | |
| Contact connection | Lötkelch | |
| Type of locking | Bajonettverriegelung | |
| Cable diameter | 5 bis 8 mm | |
| Assembly | Kabelmontage | |
| Additional parts | bestückt | |
| contact surface | versilbert | |
| Shell Material | Aluminiumlegierung |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
